Near-real time monitoring of habitat change using a neural network and MODIS data:  the PARASID approach Andy Jarvis, Loui...

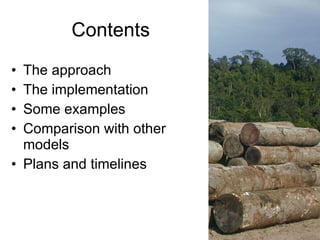

Contents <ul><li>The approach </li></ul><ul><li>The implementation </li></ul><ul><li>Some examples </li></ul><ul><li>Compa...

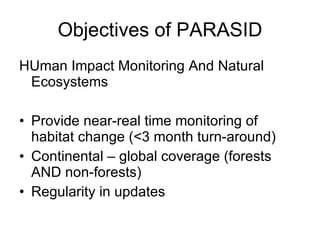

Objectives of PARASID <ul><li>HUman Impact Monitoring And Natural Ecosystems </li></ul><ul><li>Provide near-real time moni...

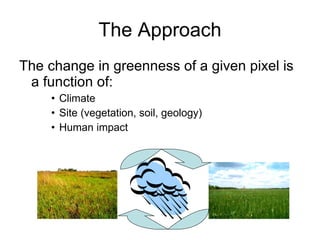

The Approach <ul><li>The change in greenness of a given pixel is a function of: </li></ul><ul><ul><ul><li>Climate </li></u...

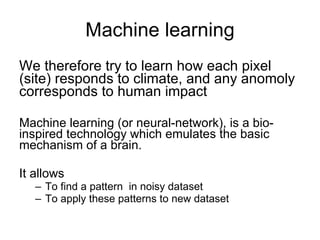

Machine learning <ul><li>We therefore try to learn how each pixel (site) responds to climate, and any anomoly corresponds ...

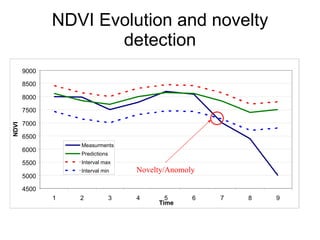

NDVI Evolution and novelty detection Novelty/Anomoly

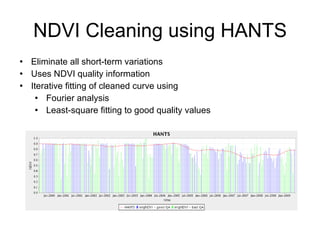

NDVI Cleaning using HANTS <ul><li>Eliminate all short-term variations </li></ul><ul><li>Uses NDVI quality information </li...

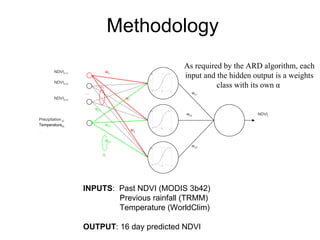

Methodology As required by the ARD algorithm, each input and the hidden output is a weights class with its own  α   α 0 α ...

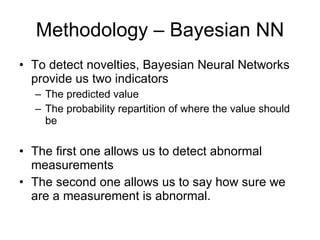

Methodology – Bayesian NN <ul><li>To detect novelties, Bayesian Neural Networks provide us two indicators </li></ul><ul><u...
Any questions????

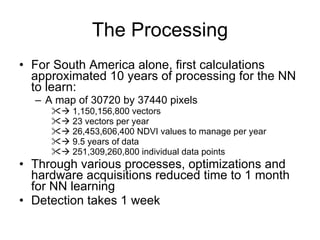

The Processing <ul><li>For South America alone, first calculations approximated 10 years of processing for the NN to learn...

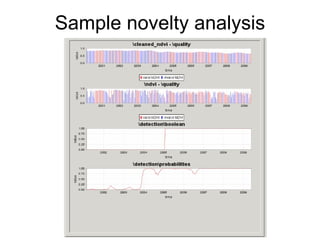

Sample novelty analysis

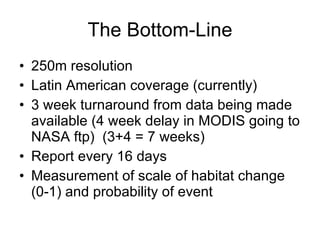

The Bottom-Line <ul><li>250m resolution </li></ul><ul><li>Latin American coverage (currently) </li></ul><ul><li>3 week tur...

Parasid  Test cases

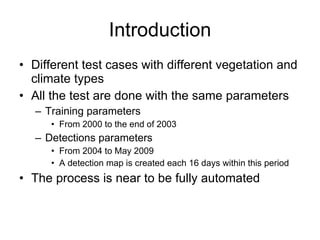

Introduction <ul><li>Different test cases with different vegetation and climate types </li></ul><ul><li>All the test are d...

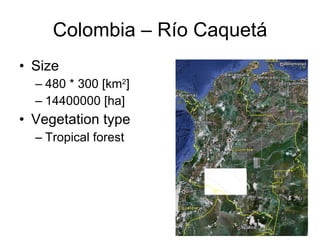

Colombia – Río Caquetá <ul><li>Size  </li></ul><ul><ul><li>480 * 300 [km 2 ] </li></ul></ul><ul><ul><li>14400000 [ha] </li...

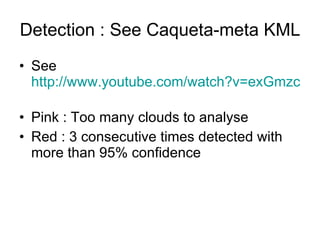

Detection : See Caqueta-meta KML <ul><li>See  http://www.youtube.com/watch?v=exGmzc70PrQ   </li></ul><ul><li>Pink : Too ma...

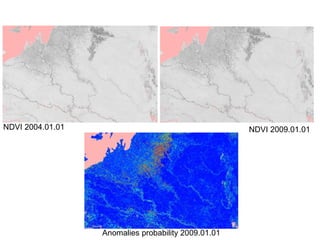

NDVI 2004.01.01 NDVI 2009.01.01 Anomalies probability 2009.01.01

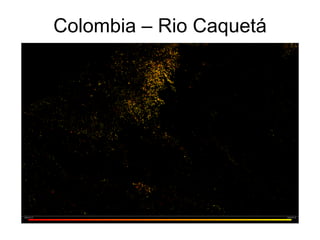

Colombia – Rio Caquetá

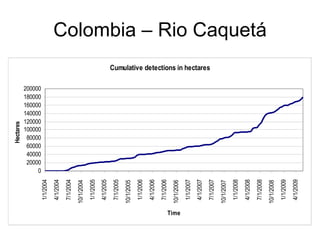

Colombia – Rio Caquetá

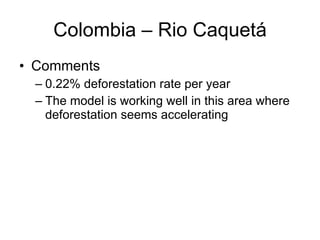

Colombia – Rio Caquetá <ul><li>Comments </li></ul><ul><ul><li>0.22% deforestation rate per year </li></ul></ul><ul><ul><li...

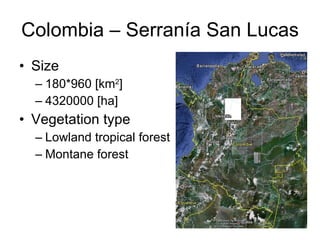

Colombia – Serranía San Lucas <ul><li>Size </li></ul><ul><ul><li>180*960 [km 2 ] </li></ul></ul><ul><ul><li>4320000 [ha] <...

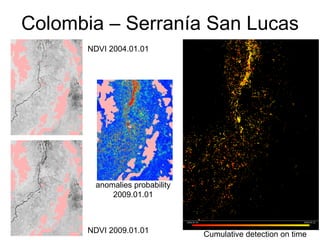

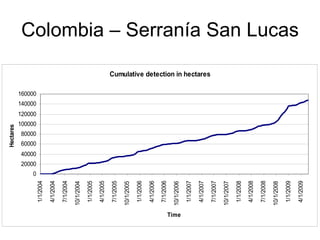

Colombia – Serranía San Lucas NDVI 2004.01.01 NDVI 2009.01.01 anomalies probability 2009.01.01 Cumulative detection on time
Colombia – Serranía San Lucas
Colombia – Serranía San Lucas <ul><li>Comments </li></ul><ul><ul><li>0.63% deforestation rate per year </li></ul></ul><ul>...

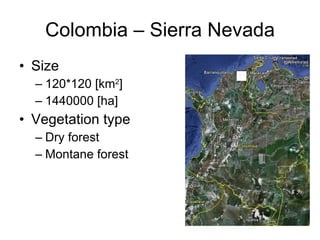

Colombia – Sierra Nevada <ul><li>Size </li></ul><ul><ul><li>120*120 [km 2 ] </li></ul></ul><ul><ul><li>1440000 [ha] </li><...

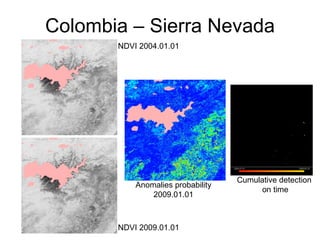

Colombia – Sierra Nevada NDVI 2004.01.01 NDVI 2009.01.01 Anomalies probability 2009.01.01 Cumulative detection  on time

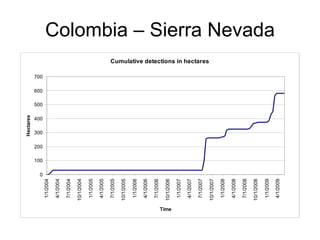

Colombia – Sierra Nevada

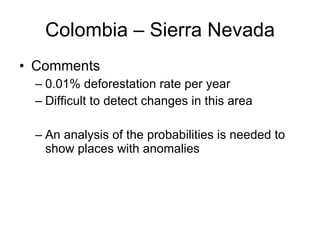

Colombia – Sierra Nevada <ul><li>Comments </li></ul><ul><ul><li>0.01% deforestation rate per year </li></ul></ul><ul><ul><...

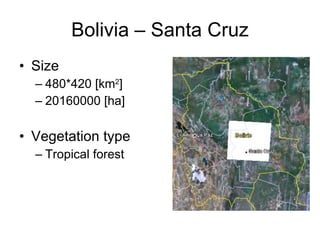

Bolivia – Santa Cruz <ul><li>Size </li></ul><ul><ul><li>480*420 [km 2 ] </li></ul></ul><ul><ul><li>20160000 [ha] </li></ul...

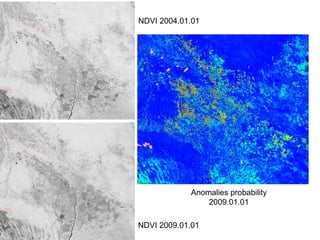

NDVI 2004.01.01 NDVI 2009.01.01 Anomalies probability 2009.01.01

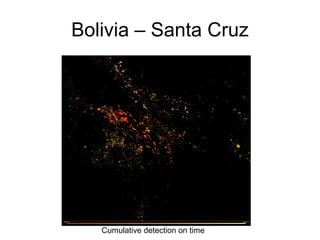

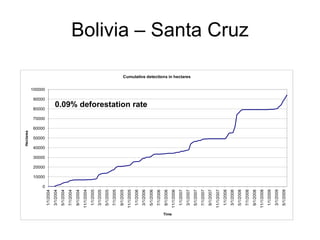

Bolivia – Santa Cruz Cumulative detection on time
Bolivia – Santa Cruz 0.09% deforestation rate

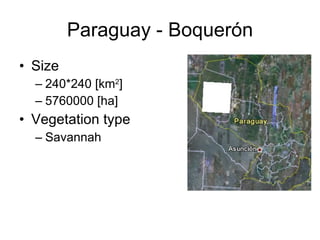

Paraguay - Boquerón <ul><li>Size </li></ul><ul><ul><li>240*240 [km 2 ] </li></ul></ul><ul><ul><li>5760000 [ha] </li></ul><...

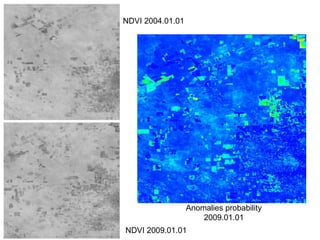

NDVI 2004.01.01 NDVI 2009.01.01 Anomalies probability 2009.01.01

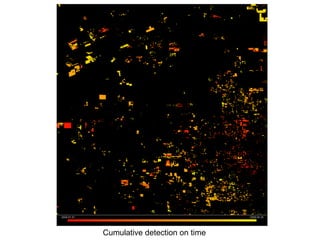

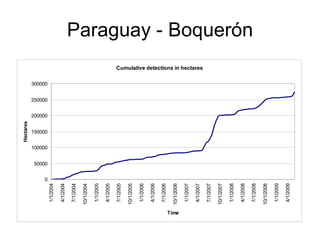

Cumulative detection on time
Paraguay - Boquerón

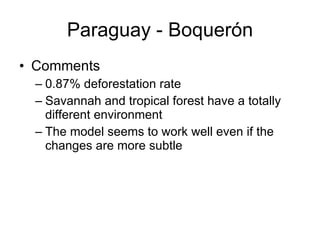

Paraguay - Boquerón <ul><li>Comments </li></ul><ul><ul><li>0.87% deforestation rate </li></ul></ul><ul><ul><li>Savannah an...

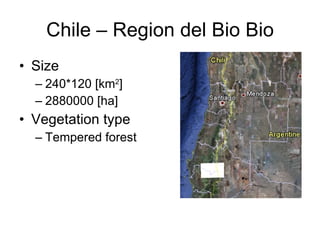

Chile – Region del Bio Bio <ul><li>Size </li></ul><ul><ul><li>240*120 [km 2 ] </li></ul></ul><ul><ul><li>2880000 [ha] </li...

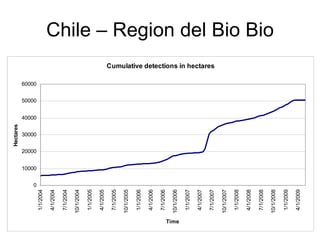

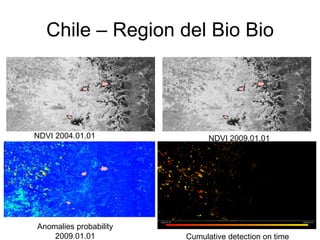

Chile – Region del Bio Bio NDVI 2004.01.01 NDVI 2009.01.01 Anomalies probability 2009.01.01 Cumulative detection on time
Chile – Region del Bio Bio

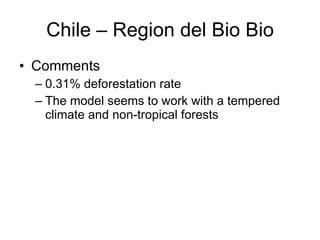

Chile – Region del Bio Bio <ul><li>Comments </li></ul><ul><ul><li>0.31% deforestation rate </li></ul></ul><ul><ul><li>The ...
And now the tough one…
OTCA Amazon Cooperation Treaty <ul><li>Size </li></ul><ul><ul><li>4228.75*3498 [km 2 ] </li></ul></ul><ul><ul><li>14792167...

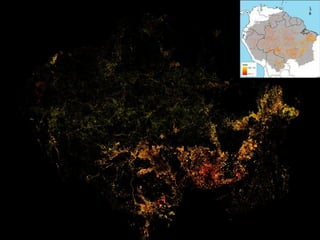

OTCA Amazon Cooperation Treaty

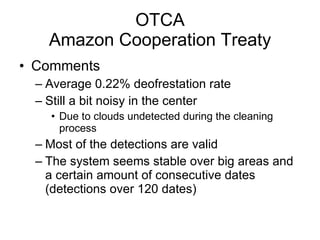

OTCA Amazon Cooperation Treaty <ul><li>Comments </li></ul><ul><ul><li>Average 0.22% deofrestation rate </li></ul></ul><ul>...

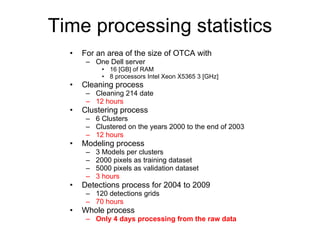

Time processing statistics <ul><li>For an area of the size of OTCA with  </li></ul><ul><ul><li>One Dell server  </li></ul>...

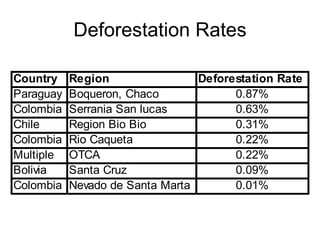

Deforestation Rates

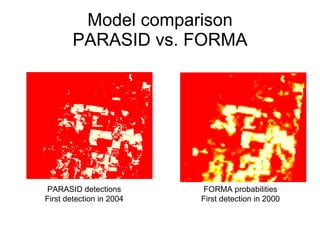

Model comparison PARASID vs. FORMA PARASID detections First detection in 2004 FORMA probabilities First detection in 2000
PARASID vs DETER It seems Parasid model detects quite small and isolate events which Deter doesn’t detect. 2006 2004
Next Steps <ul><ul><li>Fully functioning web interface January 2010 </li></ul></ul><ul><ul><li>Preliminary continental val...

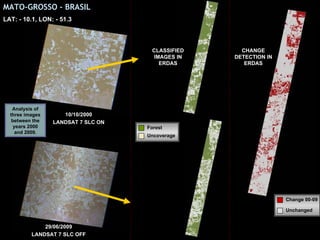

Analysis of three images between the years 2000 and 2009. MATO-GROSSO – BRASIL LAT: - 10.1, LON: - 51.3 10/10/2000 LANDSAT...

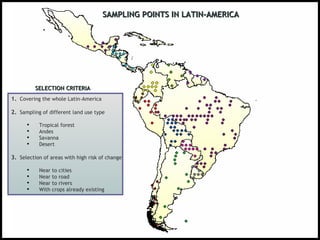

SAMPLING POINTS IN LATIN-AMERICA <ul><li>1.   Covering the whole Latin-America </li></ul><ul><li>2.   Sampling of differen...
Methodological Enhancements <ul><li>Detailed enhancements in mathematics </li></ul><ul><li>Use of daily MODIS data to redu...

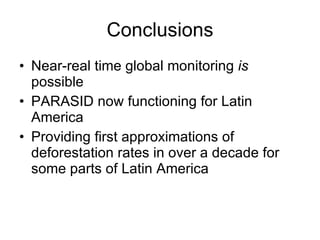

Conclusions <ul><li>Near-real time global monitoring  is  possible </li></ul><ul><li>PARASID now functioning for Latin Ame...
GRACIAS!
Andy  Jarvis PARASID Near Real Time Monitoring Of Habitat Change Using A Neural Network And  M O D I S Data  T N C  Brown ...
Upcoming SlideShare
Loading in...5
×

Andy Jarvis PARASID Near Real Time Monitoring Of Habitat Change Using A Neural Network And M O D I S Data T N C Brown Bag Sept 2009

561

Published on

Brown bag presentation for TNC in Washington 24th September 2009 on the PARASID habitat monitoring tool. Authored by Andy Jarvis, Louis Reymondin and Jerry Touval.

Published in: Technology, Business
0 Comments
1 Like
Statistics
Notes
  • Be the first to comment

No Downloads
Views
Total Views
561
On Slideshare
0
From Embeds
0
Number of Embeds
0
Actions
Shares
0
Downloads
9
Comments
0
Likes
1
Embeds 0
No embeds

No notes for slide

Andy Jarvis PARASID Near Real Time Monitoring Of Habitat Change Using A Neural Network And M O D I S Data T N C Brown Bag Sept 2009

  1. 1. Near-real time monitoring of habitat change using a neural network and MODIS data: the PARASID approach Andy Jarvis, Louis Reymondin, Jerry Touval
  2. 2. Contents <ul><li>The approach </li></ul><ul><li>The implementation </li></ul><ul><li>Some examples </li></ul><ul><li>Comparison with other models </li></ul><ul><li>Plans and timelines </li></ul>
  3. 3. Objectives of PARASID <ul><li>HUman Impact Monitoring And Natural Ecosystems </li></ul><ul><li>Provide near-real time monitoring of habitat change (<3 month turn-around) </li></ul><ul><li>Continental – global coverage (forests AND non-forests) </li></ul><ul><li>Regularity in updates </li></ul>
  4. 4. The Approach <ul><li>The change in greenness of a given pixel is a function of: </li></ul><ul><ul><ul><li>Climate </li></ul></ul></ul><ul><ul><ul><li>Site (vegetation, soil, geology) </li></ul></ul></ul><ul><ul><ul><li>Human impact </li></ul></ul></ul>
  5. 5. Machine learning <ul><li>We therefore try to learn how each pixel (site) responds to climate, and any anomoly corresponds to human impact </li></ul><ul><li>Machine learning (or neural-network), is a bio-inspired technology which emulates the basic mechanism of a brain. </li></ul><ul><li>It allows </li></ul><ul><ul><li>To find a pattern in noisy dataset </li></ul></ul><ul><ul><li>To apply these patterns to new dataset </li></ul></ul>
  6. 6. NDVI Evolution and novelty detection Novelty/Anomoly
  7. 7. NDVI Cleaning using HANTS <ul><li>Eliminate all short-term variations </li></ul><ul><li>Uses NDVI quality information </li></ul><ul><li>Iterative fitting of cleaned curve using </li></ul><ul><ul><li>Fourier analysis </li></ul></ul><ul><ul><li>Least-square fitting to good quality values </li></ul></ul>
  8. 8. Methodology As required by the ARD algorithm, each input and the hidden output is a weights class with its own α α 0 α c INPUTS : Past NDVI (MODIS 3b42) Previous rainfall (TRMM) Temperature (WorldClim) OUTPUT : 16 day predicted NDVI NDVI t Precipitation (t) Temperature (t) … … w 0 w 1 w 2 NDVI (t-1) NDVI (t-2) NDVI (t-n) w p1 w p2 w p3 w o1 w o2 w o3
  9. 9. Methodology – Bayesian NN <ul><li>To detect novelties, Bayesian Neural Networks provide us two indicators </li></ul><ul><ul><li>The predicted value </li></ul></ul><ul><ul><li>The probability repartition of where the value should be </li></ul></ul><ul><li>The first one allows us to detect abnormal measurements </li></ul><ul><li>The second one allows us to say how sure we are a measurement is abnormal. </li></ul>
  10. 10. Any questions????
  11. 11. The Processing <ul><li>For South America alone, first calculations approximated 10 years of processing for the NN to learn: </li></ul><ul><ul><li>A map of 30720 by 37440 pixels </li></ul></ul><ul><ul><ul><li> 1,150,156,800 vectors </li></ul></ul></ul><ul><ul><ul><li> 23 vectors per year </li></ul></ul></ul><ul><ul><ul><li> 26,453,606,400 NDVI values to manage per year </li></ul></ul></ul><ul><ul><ul><li> 9.5 years of data </li></ul></ul></ul><ul><ul><ul><li> 251,309,260,800 individual data points </li></ul></ul></ul><ul><li>Through various processes, optimizations and hardware acquisitions reduced time to 1 month for NN learning </li></ul><ul><li>Detection takes 1 week </li></ul>
  12. 12. Sample novelty analysis
  13. 13. The Bottom-Line <ul><li>250m resolution </li></ul><ul><li>Latin American coverage (currently) </li></ul><ul><li>3 week turnaround from data being made available (4 week delay in MODIS going to NASA ftp) (3+4 = 7 weeks) </li></ul><ul><li>Report every 16 days </li></ul><ul><li>Measurement of scale of habitat change (0-1) and probability of event </li></ul>
  14. 15. Parasid Test cases
  15. 16. Introduction <ul><li>Different test cases with different vegetation and climate types </li></ul><ul><li>All the test are done with the same parameters </li></ul><ul><ul><li>Training parameters </li></ul></ul><ul><ul><ul><li>From 2000 to the end of 2003 </li></ul></ul></ul><ul><ul><li>Detections parameters </li></ul></ul><ul><ul><ul><li>From 2004 to May 2009 </li></ul></ul></ul><ul><ul><ul><li>A detection map is created each 16 days within this period </li></ul></ul></ul><ul><li>The process is near to be fully automated </li></ul>
  16. 17. Colombia – Río Caquetá <ul><li>Size </li></ul><ul><ul><li>480 * 300 [km 2 ] </li></ul></ul><ul><ul><li>14400000 [ha] </li></ul></ul><ul><li>Vegetation type </li></ul><ul><ul><li>Tropical forest </li></ul></ul>
  17. 18. Detection : See Caqueta-meta KML <ul><li>See http://www.youtube.com/watch?v=exGmzc70PrQ </li></ul><ul><li>Pink : Too many clouds to analyse </li></ul><ul><li>Red : 3 consecutive times detected with more than 95% confidence </li></ul>

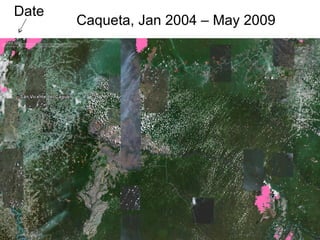

  18. 19. Caqueta, Jan 2004 – May 2009 Date
