Climate change and agriculture: How models can guide our adaptation strategies Andy Jarvis, Julian Ramirez, Edward Guevara...

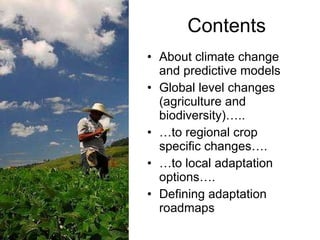

Contents <ul><li>About climate change and predictive models </li></ul><ul><li>Global level changes (agriculture and biodiv...

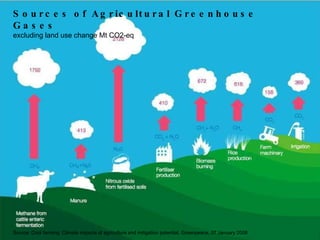

Sources of Agricultural Greenhouse Gases excluding land use change Mt CO2-eq Source: Cool farming: Climate impacts of agri...

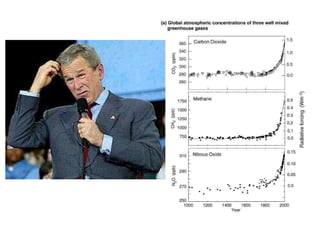

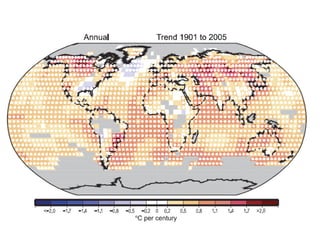

How can we be sure that it is changing?


Arctic Ice is Melting

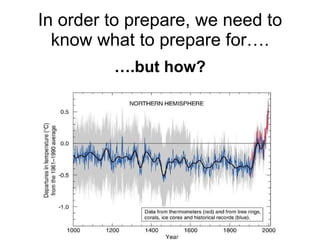

In order to prepare, we need to know what to prepare for…. <ul><li>… .but how? </li></ul>

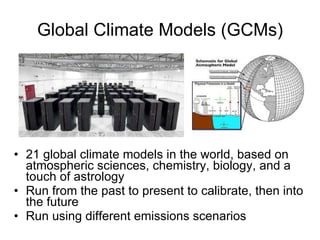

Global Climate Models (GCMs) <ul><li>21 global climate models in the world, based on atmospheric sciences, chemistry, biol...

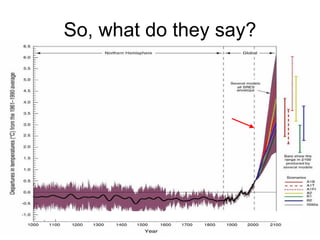

So, what do they say?

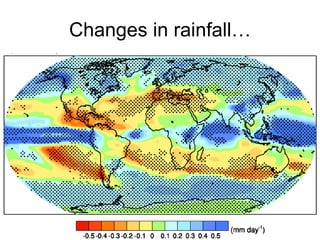

Changes in rainfall…

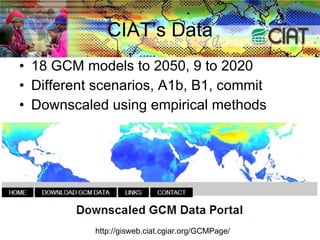

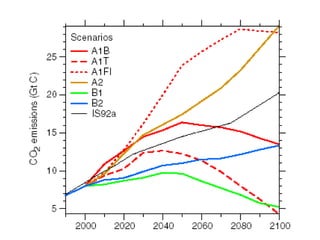

CIAT’s Data <ul><li>18 GCM models to 2050, 9 to 2020 </li></ul><ul><li>Different scenarios, A1b, B1, commit </li></ul><ul>...

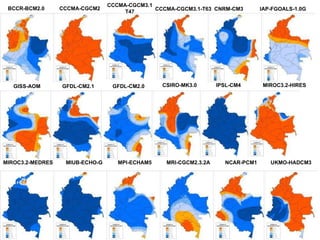

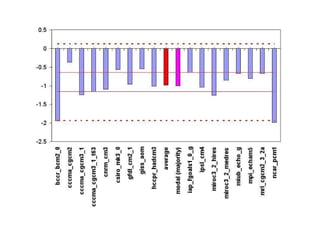

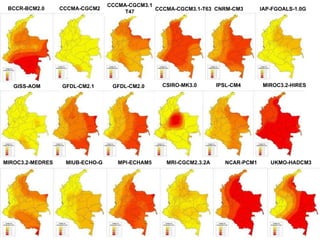

BCCR-BCM2.0 CCCMA-CGCM2 CCCMA-CGCM3.1 T47 CCCMA-CGCM3.1-T63 CNRM-CM3 IAP-FGOALS-1.0G GISS-AOM GFDL-CM2.1 GFDL-CM2.0 CSIRO-...
BCCR-BCM2.0 CCCMA-CGCM2 CCCMA-CGCM3.1 T47 CCCMA-CGCM3.1-T63 CNRM-CM3 IAP-FGOALS-1.0G GISS-AOM GFDL-CM2.1 GFDL-CM2.0 CSIRO-...

The Impacts on Crop Suitability

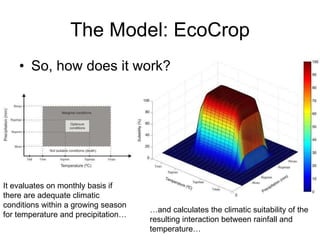

The Model: EcoCrop <ul><li>So, how does it work? </li></ul>It evaluates on monthly basis if there are adequate climatic co...

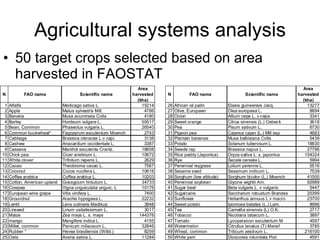

Agricultural systems analysis <ul><li>50 target crops selected based on area harvested in FAOSTAT </li></ul>

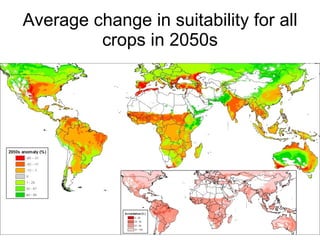

Average change in suitability for all crops in 2050s

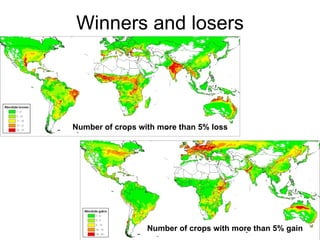

Winners and losers Number of crops with more than 5% loss Number of crops with more than 5% gain
Message 1 Global suitability for agriculture reduces moderately, but problems of food distribution are exacerbated
But what about land-use and biodiversity distribution in 2050?

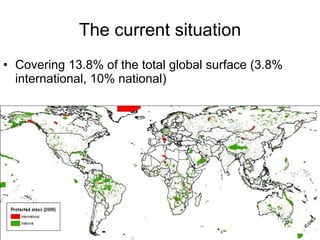

The current situation <ul><li>Covering 13.8% of the total global surface (3.8% international, 10% national) </li></ul>

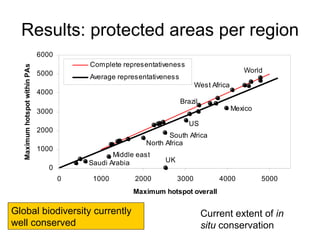

Results: protected areas per region Current extent of  in situ  conservation Global biodiversity currently well conserved

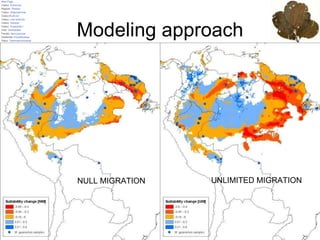

Modeling approach <ul><li>Aplying the maximum entropy algorithm </li></ul><ul><ul><li>Macoubea guianensis  Aubl.: food for...

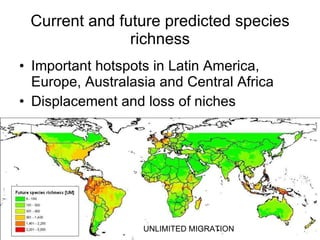

Current and future predicted species richness <ul><li>Important hotspots in Latin America, Europe, Australasia and Central...

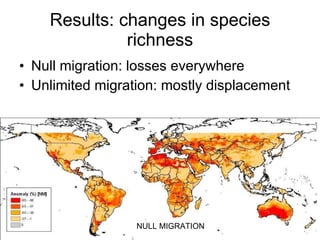

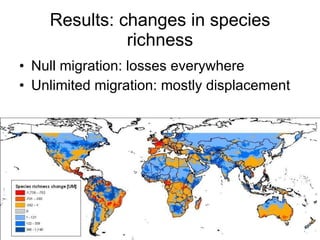

Results: changes in species richness <ul><li>Null migration: losses everywhere </li></ul><ul><li>Unlimited migration: most...
Results: changes in species richness <ul><li>Null migration: losses everywhere </li></ul><ul><li>Unlimited migration: most...

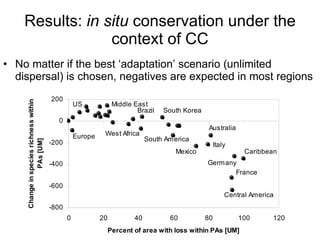

Results:  in situ  conservation under the context of CC <ul><li>No matter if the best ‘adaptation’ scenario (unlimited dis...
Message 2 There will be greater pressure on land resources for multiple uses, as currently non-arable land becomes arable,...
Minimising impacts:  Breeding for beans ( Phaseolus vulgaris  L.) towards 2020

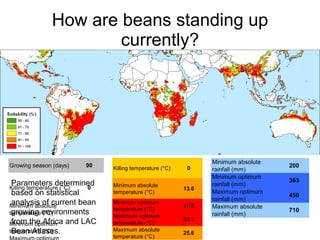

How are beans standing up currently? Parameters determined based on statistical analysis of current bean growing environme...

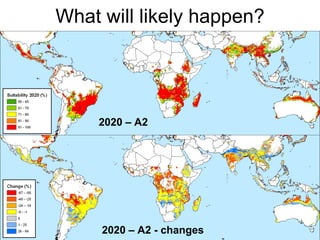

What will likely happen? 2020 – A2 2020 – A2 - changes

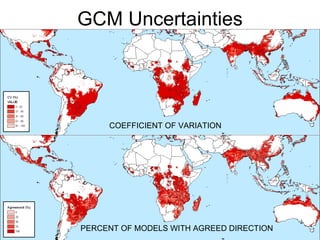

GCM Uncertainties COEFFICIENT OF VARIATION PERCENT OF MODELS WITH AGREED DIRECTION

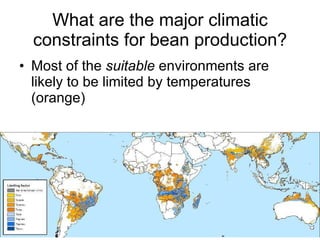

What are the major climatic constraints for bean production? <ul><li>Most of the  suitable  environments are likely to be ...

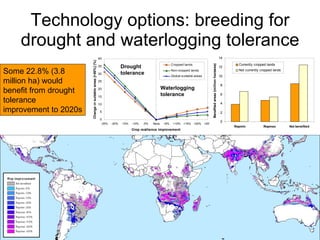

Technology options: breeding for drought and waterlogging tolerance Some 22.8% (3.8 million ha) would benefit from drought...

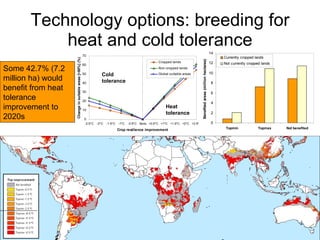

Technology options: breeding for heat and cold tolerance Cold tolerance Heat tolerance Some 42.7% (7.2 million ha) would b...
Impacts on production of cassava

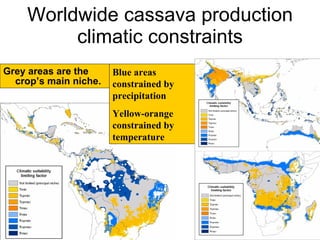

Worldwide cassava production climatic constraints <ul><li>Grey areas are the crop’s main niche.  </li></ul>Blue areas cons...

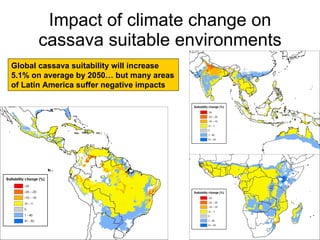

Impact of climate change on cassava suitable environments Global cassava suitability will increase 5.1% on average by 2050...

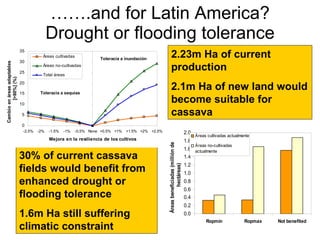

…… .and for Latin America? Drought or flooding tolerance 30% of current cassava fields would benefit from enhanced drought...

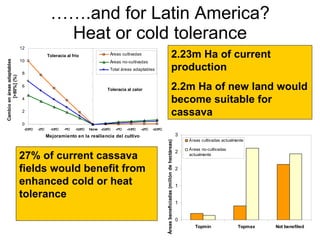

…… .and for Latin America? Heat or cold tolerance 27% of current cassava fields would benefit from enhanced cold or heat t...
Pest and Disease Impacts

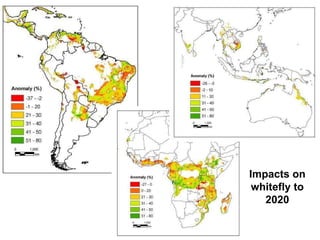

Impacts on whitefly to 2020
Message 3 Global impacts can be addressed in many cases through existing diversity, or through crop improvement, but we mu...
Moving more local… <ul><li>Coffee in Colombia and Central America </li></ul>

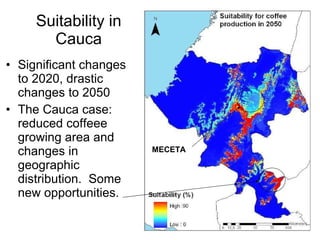

Suitability in Cauca <ul><li>Significant changes to 2020, drastic changes to 2050 </li></ul><ul><li>The Cauca case: reduce...

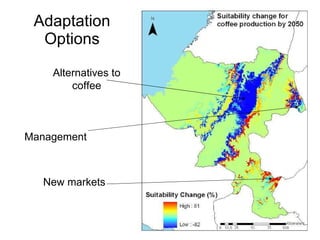

Adaptation Options Management New markets Alternatives to coffee
Message 4 Locally, some significant upheavals could occur in terms of economies, cultures, and land-use patterns

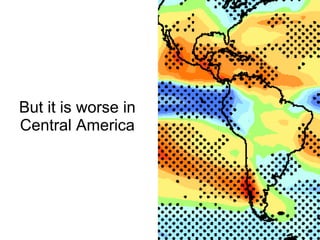

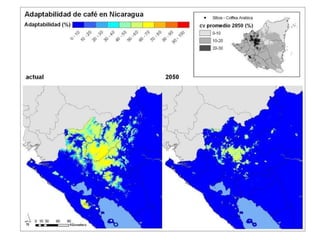

But it is worse in Central America





So what do we do?

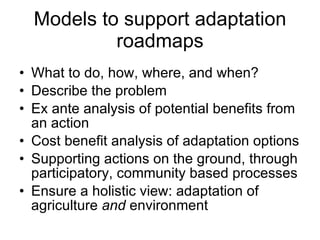

Models to support adaptation roadmaps <ul><li>What to do, how, where, and when? </li></ul><ul><li>Describe the problem </l...
[email_address]
