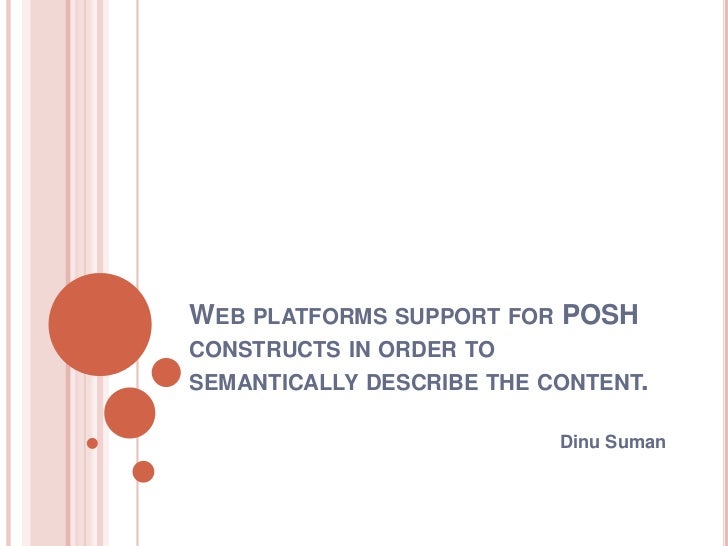

  1. 1. WEB PLATFORMS SUPPORT FOR POSHCONSTRUCTS IN ORDER TOSEMANTICALLY DESCRIBE THE CONTENT. Dinu Suman
  2. 2. WEB 3.0 AND SEMANTIC WEB
  3. 3. SEMANTIC WEB “… a place where machines can read Web pages much as we humans read them, a place where search engines and software agents can better troll the Net and find what we’re looking for.” (PCMag)
  4. 4. WHAT IS POSH ?Plain Old Semantic HTML (POSH)POSH ≈ “valid, semantic, accessible, well-structured HTML”
  5. 5. THE POSH CHECKLIST: The first rule of POSH is that you must validate your POSH. Second, drop the use of TABLEs for purely presentational purposes, spacer GIFs, and presentational-html in general. Next, fix your “Bed and BReakfast” markup. Eliminate “Anorexic Anchors”. Use good semantic-class-names. ... http://microformats.org/wiki/posh
  6. 6. SEMANTIC REPRESENTATIONS Microformats - 2005 RDF – 2004 (not covered here) Microdata - 2011
  7. 7. USAGE: Search for reviews Search for songs, albums
  8. 8. USAGE http://www.flickr.com/map/ - Geo tagging
  9. 9. MICROFORMATS “A microformat is a web-based approach to semantic markup which seeks to re-use existing HTML/XHTML tags to convey metadata and other attributes in web pages and other contexts that support (X)HTML, such as RSS. This approach allows software to process information intended for end-users (such as contact information, geographic coordinates, calendar events, and the like) automatically.” (Wikipedia)
  10. 10. MICROFORMATS Easy to write Html attributes used:  class  rel  rev
  11. 11. COMMONLY USED TYPE: hAtom hCalendar hCard hResume hReview rel=“tag”, rel=“nofollow”, rel=“licence” XFN
  12. 12. EXAMPLE 1 - HCARD<div id="hcard-Dinu-Suman" class="vcard"> <span class="fn">Dinu Suman</span> <div class="org">Universitatea Alexandru Ioan Cuza</div> <a class="email" href="mailto:dinu.suman@info.uaic.ro">dinu.suman@info.uaic.ro </a> <div class="adr"> <div class="street-address">bd. Carol I</div> <span class="locality">Iasi</span>, <span class="postal-code">70100</span> <span class="country-name">Romania</span> </div> <div class="tel">(0232) 22-33-44</div></div>
  13. 13. EXAMPLE 2 - HCALENDAR<div class="vevent" id="hcalendar-Web-Client-Presentation"> <abbr class="dtstart" title="2012-01-10">January 10th</abbr> : <abbr class="dtend" title="2012-01-18">18th, 2012</abbr> <span class="summary">Web Client Presentation</span> <div class="description">Tema 2 la obiectul “Dezvoltarea aplicatiilor Web la nivel de client" </div> <div class="tags">Tags: <a rel="tag" href="http://eventful.com/events/tags/web">web</a>, <a rel="tag" href="http://eventful.com/events/tags/cliw"> cliw</a>, <a rel="tag" href="http://eventful.com/events/tags/infoiasi"> infoiasi</a>, </div></div>
  14. 14. EXAMPLE 3 - HREVIEW<div class="hreview" id="hreview-cool-Monitor"> <h2 class="summary">cool Monitor</h2> <abbr class="dtreviewed" title="2004-01-09T16:02">Jan 9, 2004</abbr> by <span class="reviewer vcard"> <span class="fn">Dinu</span> </span> <img alt="photo of BenQ XL2410T" src="http://bit.ly/xD5ohY" class="photo" /> <div class="item"> <a class="fn url" href="http://www.trustedreviews.com/BenQ- XL2410T_Monitor_review">BenQ XL2410T</a> </div> <abbr title="5" class="rating">★★★★★</abbr></div>
  15. 15. MICRODATA Only in Html5 and XHtml 5 (X)Html5 attributes:  itemscope  itemtype  itemid  itemprop  itemref
  16. 16. COMMONLY USED TYPE: Creative works: CreativeWork, Book, Movie,MusicRecording, Recipe, TVSeries ... Embedded non-text objects: AudioObject, ImageObject, VideoObject Event Organization Person Place, LocalBusiness, Restaurant ... Product, Offer, AggregateOffer Review, AggregateRating
  17. 17. EXAMPLE 1 - PERSON<div itemscope itemtype="http://schema.org/Person"> <a itemprop="url" href="www.info.uaic.ro/~dinu.suman"> <div itemprop="name"><strong>Dinu Suman</strong></div> </a> <div itemscope itemtype="http://schema.org/Organization"> <span itemprop="name">Universitatea Alexandru Ioan Cuza</span> </div> <div itemprop="jobtitle">Student</div> <div itemprop="description">Student anul 3</div> <div itemprop="address" itemscope itemtype="http://schema.org/PostalAddress"> <div> <span itemprop="addressLocality">Iasi</span> </div> <div itemprop="postalCode">70000</div> <div itemprop="addressCountry">Romania</div> </div> <div itemprop="email">dinu.suman@info.uaic.ro</div> <div> <meta itemprop="birthDate" content="1-01-1990">DOB: 01/1990/1 </div></div>
  18. 18. EXAMPLE 2 - PRODUCT<div itemscope itemtype="http://schema.org/Product"> <a itemprop="url" href="www.mouse.com/razer-x123"> <div itemprop="name"><strong>Mouse Razer X123</strong></div> </a> <div itemprop="description">Cel mai bun Mouse</div> <div itemprop="brand" itemscope itemtype="http://schema.org/Organization"> <span itemprop="name">Logitech</span> </div> <div>Model: <span itemprop="model">Razer X123</span></div> <div>Product ID: <span itemprop="productID">1</span></div> <div itemprop="aggregateRating" itemscope itemtype="http://schema.org/AggregateRating"> <span itemprop="ratingValue">3.7</span> based on <span itemprop="reviewCount">20</span> reviews</div> <div itemprop="offers" itemscope itemtype="http://schema.org/Offer"> <span itemprop="price">500</span> <link itemprop="itemCondition" href="http://schema.org/NewCondition" /> New </div></div>
  19. 19. EXAMPLE 3 - MOVIE<div itemscope itemtype="http://schema.org/Movie"> <a itemprop="url" href="www.imdb.com/title/tt1375666/"> <div itemprop="name"><strong>Inception</strong></div> </a> <div itemprop="director" itemscope itemtype="http://schema.org/Person"> Directed by: <span itemprop="name">Christopher Nolan</span> </div> <div> Starring: <div itemprop="actors" itemscope itemtype="http://schema.org/Person"> <span itemprop="name">Leonardo DiCaprio</span> </div> <div itemprop="actors" itemscope itemtype="http://schema.org/Person"> <span itemprop="name">Ken Watanabe</span> </div> </div></div>
  20. 20. TOOLS: Firefox Addon “Operator” - https://addons.mozilla.org/en- US/firefox/addon/operator/ IE Addon “Oomph 2” - http://www.ieaddons.com/en/addons/detail.aspx?id =1110 Safari - http://zappatic.net/projects/safarimicroformats
  21. 21. REFERENCES + USEFUL RESOURCES: http://microformats.org/ http://schema.org http://developer.search.yahoo.com/start http://support.google.com/webmasters/bin/topic.py? hl=en&topic=21997 http://bit.ly/yNolQE - Microformats Cheat-Sheet http://schema-creator.org
  22. 22. Q&A?

×
