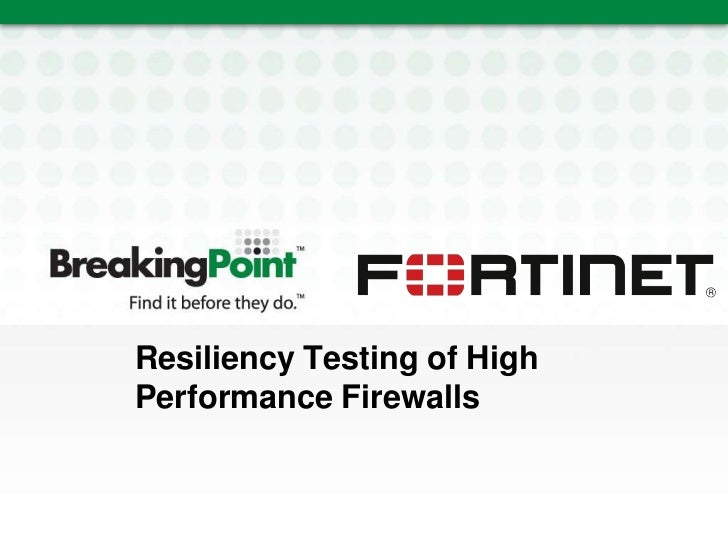

    • 1. Resiliency Testing of High Performance Firewalls
    • 2. Agenda
      Packets Per Second
      Connections Per Second
      Simultaneous Sessions
      Stacking It Up
      Real Traffic
      Resiliency Score
    • 3. Throughput
      What is it?
      It’s all about ‘volume’
      Why is it important?
      Maximum transfer capability
      How is it affected?
      Packet size – for smaller packets we may become packet per second bound
      File size – for smaller files we may become connection per second bound
      Physical limits – bus/interface limits
      How do we find it?
      For UDP – Single or multiple streams of large packet sizes
      For TCP – multiple HTTP GETs of 32K files
    • 4.
    • 5. Packets Per Second
      What is it?
      It’s all about ‘pressure’
      Why is it important?
      Small transaction characteristics
      How is it affected?
      Packet size – for larger packets we may become throughput bound
      How do we find it?
      Reduce packet size until you see packets per second maximize
    • 6.
    • 7. Latency
      What is it?
      It’s all about ‘bursts’
      Per packet (UDP)
      Per transaction (TCP)
      Why is it important?
      Transfer delay
      How is it affected?
      Hardware or software
      Session setup
      How do we find it?
      Measure latency at 10%, 50%, 75%, and 90% utilization
    • 8.
    • 9. Connections per second
      What is it?
      It’s all about ‘temperature’
      Why is it important?
      Most everything is a connection
      How is it affected?
      Protocol type (ICMP, UDP, TCP, etc) – TCP hardest with the most state
      Handled in CPU
      How do we find it?
      HTTP 1.0 connections transferring a single byte file
    • 10. Connections per second (cont)
      SYN handshake – 3 packets
      FIN close – 3 packets
      Data transfer – 4 packets
      Total of 10 packets. Can be reduced
      RST, piggyback gets, SACK – But this may be cheating
    • 11.
    • 12. Simultaneous sessions
      What is it?
      It’s all about ‘streams’
      Why is it important?
      How many parallel requests can you handle?
      How is it affected?
      Memory is the biggest factor
      How do we find it?
      Open, but do not complete sessions.
      Once all sessions are open, transfer data and close sessions
    • 13.
    • 14. Stacking it up
    • 15. Real Traffic
    • 16. Real Traffic
      Why is it good?
      More than one variable at a time
      Protocol interaction
      What makes it hard?
      Difficult to repeat
      Traffic is different for every customer
      Can we test it?
      Different mixes of application traffic
      Standard background traffic with specific
      security traffic
    • 17. How? Attack Thyself!
      Real Attacks
      • 4,500 live security attacks
      • 18. 100+ evasions
      • 19. Malware
      • 20. Spam
      • 21. DDoS and Botnet simulation
      • 22. Custom attacks
      • 23. Research and frequent updates
      Real World Applications
      • 150+ application protocols
      • 24. Social media, peer-to-peer, voice, video
      • 25. Web and enterprise applications, gaming
      • 26. Custom applications
      • 27. Frequent updates
      Unprecedented Performance
      • 120 Gbps blended application traffic
      • 28. 90M concurrent TCP sessions
      • 29. 3M TCP sessions/second
      • 30. 38 Gbps SSL bulk encryption
    • Resiliency Score
      What is it?
      Combines aspects of all previous tests to
      produce a single comparable result
      Why is it important?
      Can provide an easy way to compare different
      devices to each other
      How is it affected?
      Device configuration
      How do we find it?
      Its as simple as clicking a button (just do it before you go home)
    • 31. FortiGate 3950B
    • 32. Questions and Answers
