Using Web Services to Integrate a .NET solution with EMC Documentum  Tim Harmon SVP of Corporate Development  Planview Jos...
About Planview <ul><li>Recognized Industry Leader  </li></ul><ul><ul><li>Pioneered in 1989 what is now Portfolio Managemen...
Planview Enterprise
Drivers <ul><li>Leverage the industry’s premium content and collaboration management for content-intensive Planview Enterp...
Planview Enterprise + EMC Documentum ECM <ul><li>Manage portfolio metrics (Targets and Progress) in Planview </li></ul><ul...
Use Case: Adding a Project
Use Case: Adding a Project
Use Case: Adding a Project
Use Case: Browse Content
Use Case: Browse Content
Design Challenges <ul><li>Integration approach </li></ul><ul><ul><li>Application level integration (WDK) </li></ul></ul><u...
Implementation Challenges <ul><li>Data synchronization </li></ul><ul><li>Object naming problems </li></ul><ul><li>Cross-pl...
Integration Approach <ul><li>Initial plan: Webtop customizations fetch folder hierarchies from Planview </li></ul><ul><ul>...
Why Web Services? <ul><li>Loosely coupled integration </li></ul><ul><ul><li>Enabled separate development teams to build th...
Architecture
Implementation Overview <ul><li>Web Services </li></ul><ul><li>SBOs </li></ul><ul><li>Binding Documentum and Planview user...
Web Services
Web Services
Web Services
Web Services
Web Services: WSF and Basic Integration WS <ul><li>WSF: </li></ul><ul><ul><li>Could not use WSF because of 5.2.5 compatibi...
SBOs <ul><li>Integration extensively leverages SBOs </li></ul><ul><ul><li>Requirement to support Content Server 5.2.5 prec...
User Binding & Single Sign-On <ul><li>Authenticating Planview users in Documentum </li></ul><ul><ul><li>How do we associat...
Data Synchronization <ul><li>Data synchronization: a classic enterprise integration challenge </li></ul><ul><ul><li>How ca...
Synchronization Example
Synchronization Example
Synchronization Example
Synchronization Example
Synchronization Example
Security Challenges <ul><li>How to reconcile different security models? </li></ul><ul><ul><li>Planview: implied rules-base...
Security: Modified Solution <ul><li>Compress synchronization message with ‘hints’ </li></ul><ul><ul><li>Hints specify how ...
Webtop Customizations <ul><li>Auto-navigation to a specific folder </li></ul><ul><ul><li>Subclassed the Main component to ...
Use Case: Show Locked Documents
Use Case: Show Locked Documents
Present and Future… <ul><li>Current Status </li></ul><ul><ul><li>DfD certified </li></ul></ul><ul><li>Future Directions </...
Upcoming SlideShare
Loading in …5
×

Using Web Services To Integrate a .NET Solution with EMC Documentum

7,114 views
6,854 views

Published on

Momentum 2006 Presentation

Published in: Economy & Finance, Technology
2 Comments
7 Likes
Statistics
Notes
  • Stylish presentation. I like this one.

    Roy Jan
    http://be.freepolyphonicringtones.org/ http://dk.freepolyphonicringtones.org/
       Reply
    Are you sure you want to  Yes  No
    Your message goes here
  • Excellent slideshow about the need to innovate business models; how you can represent them succinctly; together with the need to make invention initiatives actionable. Superb use of photos together with clear to see illustrative samples.
    Teisha
    http://dashinghealth.com http://healthimplants.com
       Reply
    Are you sure you want to  Yes  No
    Your message goes here
No Downloads
Views
Total views
7,114
On SlideShare
0
From Embeds
0
Number of Embeds
53
Actions
Shares
0
Downloads
0
Comments
2
Likes
7
Embeds 0
No embeds

No notes for slide
  • Using Web Services To Integrate a .NET Solution with EMC Documentum

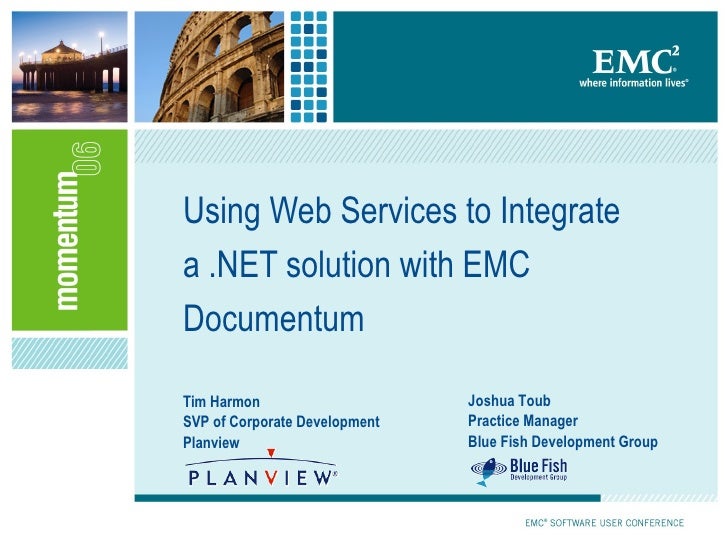

    1. 1. Using Web Services to Integrate a .NET solution with EMC Documentum Tim Harmon SVP of Corporate Development Planview Joshua Toub Practice Manager Blue Fish Development Group
