  • Spinaliscervicus or Longissimusthoracis (region, insertion)
  • Back and ab (part 1)

    1. 1. +ESS 3092: KINESIOLOGYWeek 6
    2. 2. +Back andAbdomen3

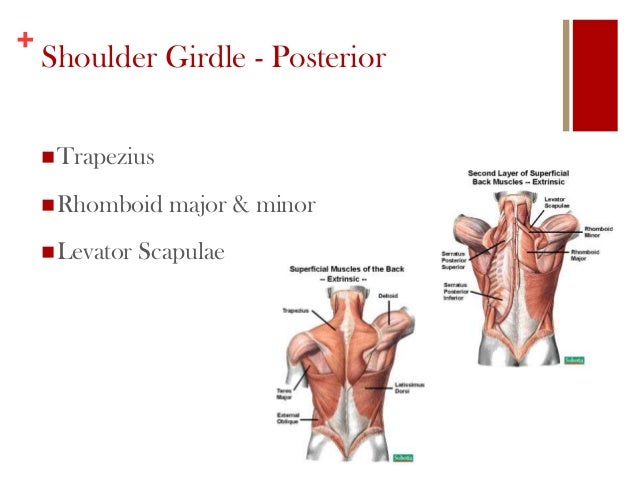

    3. 3. +Shoulder Girdle - PosteriorTrapeziusRhomboid major & minorLevator Scapulae
    4. 4. TrapeziusOrigin spinous process (T), skullInsertion lateral clavicle, acromionprocess, scapular spineLocation posteriorMovements elevation (upper & middle), depression (lower) retraction (adduction) upward rotation (middle &lower)p. 66
    5. 5. Rhomboid Major & MinorOrigin spinous process (C7, T1-5)Insertion medial border of scapulaLocation posterior/medialMovements downward rotation elevation retractionp. 69

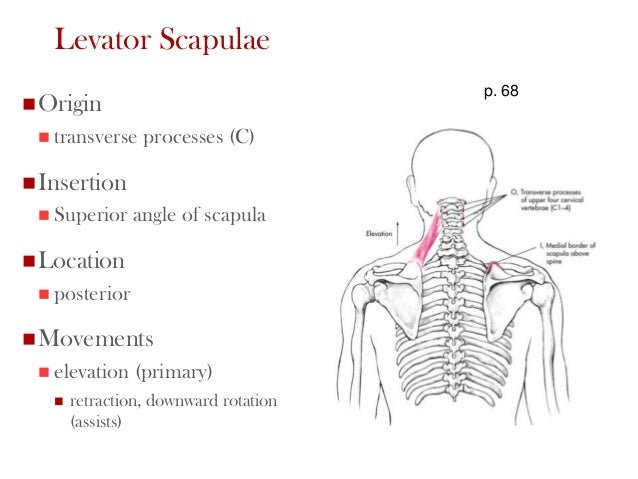

    6. 6. Levator ScapulaeOrigin transverse processes (C)Insertion Superior angle of scapulaLocation posteriorMovements elevation (primary) retraction, downward rotation(assists)p. 68

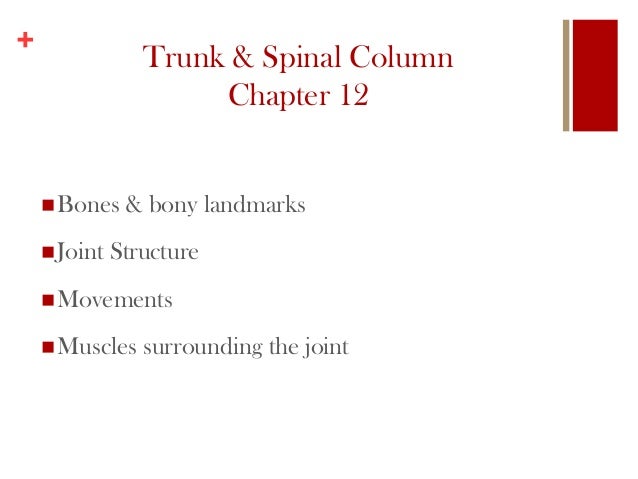

    7. 7. +Trunk & Spinal ColumnChapter 12Bones & bony landmarksJoint StructureMovementsMuscles surrounding the joint

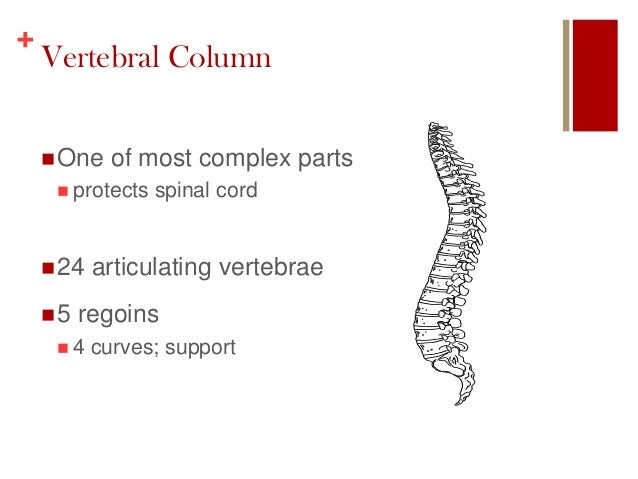

    8. 8. +Vertebral ColumnOne of most complex parts protects spinal cord24 articulating vertebrae5 regoins 4 curves; support
    9. 9. +Curves absorption of shockCervical support headThoracic present at birthLumbar develops: wt bearingSacrococcygeal fusedPosterior Convex
    10. 10. Bony Landmarks spinous process transverse process body odontoid process/dens skeleton superior & inferiorarticular processCTL

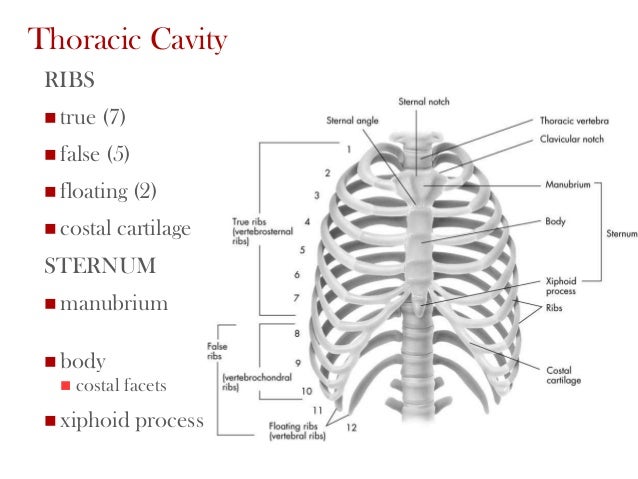

    11. 11. Thoracic CavityRIBS true (7) false (5) floating (2) costal cartilageSTERNUM manubrium body costal facets xiphoid process

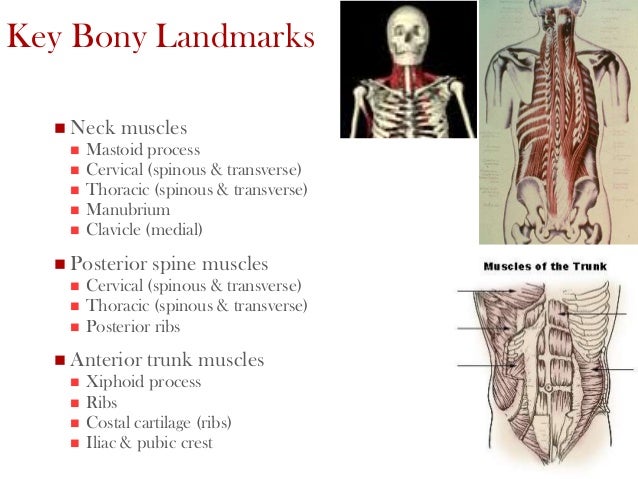

    12. 12. Key Bony Landmarks Neck muscles Mastoid process Cervical (spinous & transverse) Thoracic (spinous & transverse) Manubrium Clavicle (medial) Posterior spine muscles Cervical (spinous & transverse) Thoracic (spinous & transverse) Posterior ribs Anterior trunk muscles Xiphoid process Ribs Costal cartilage (ribs) Iliac & pubic crest

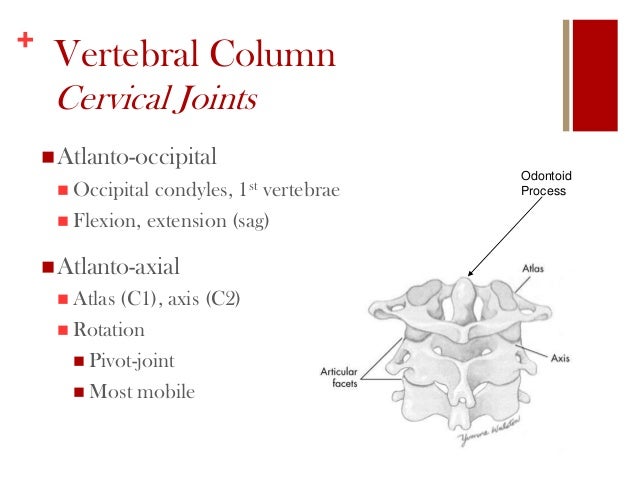

    13. 13. +Vertebral ColumnCervical JointsAtlanto-occipital Occipital condyles, 1st vertebrae Flexion, extension (sag)Atlanto-axial Atlas (C1), axis (C2) Rotation Pivot-joint Most mobileOdontoidProcess

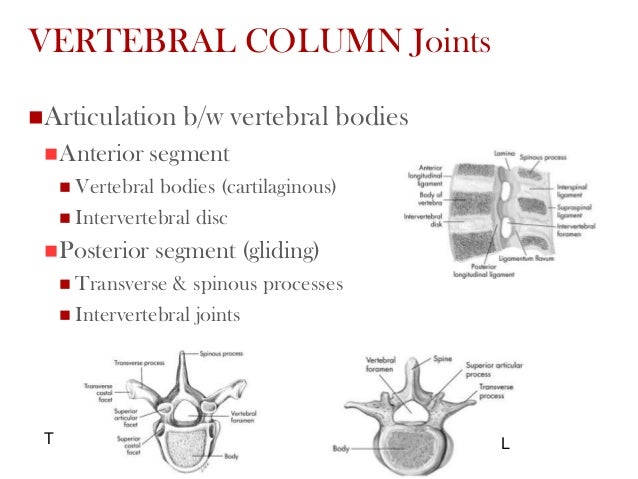

    14. 14. VERTEBRAL COLUMN JointsArticulation b/w vertebral bodiesAnterior segment Vertebral bodies (cartilaginous) Intervertebral discPosterior segment (gliding) Transverse & spinous processes Intervertebral jointsT L

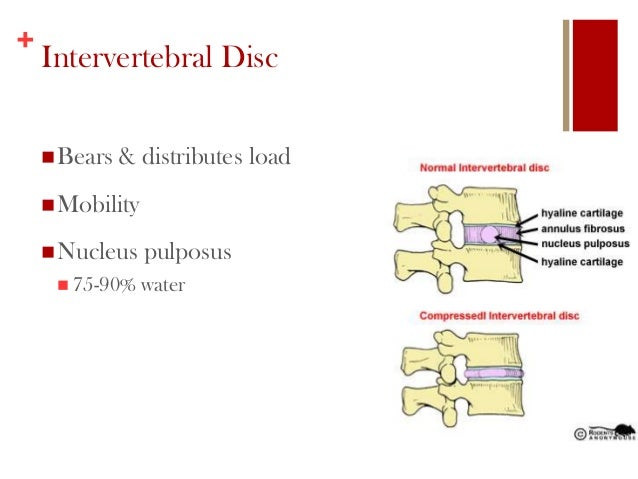

    15. 15. +Intervertebral DiscBears & distributes loadMobilityNucleus pulposus 75-90% water

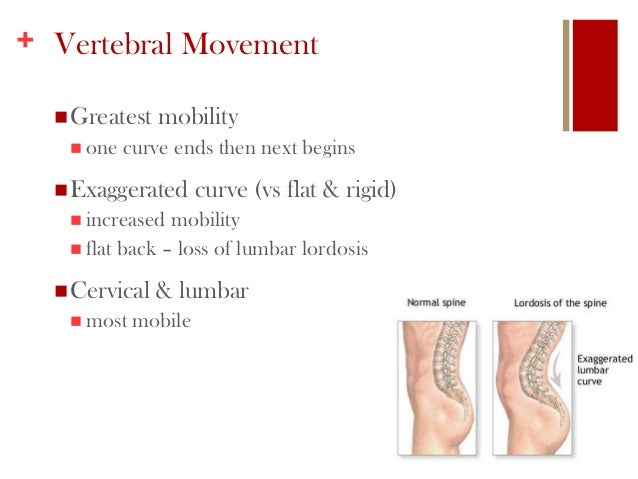

    16. 16. + Vertebral MovementGreatest mobility one curve ends then next beginsExaggerated curve (vs flat & rigid) increased mobility flat back – loss of lumbar lordosisCervical & lumbar most mobile

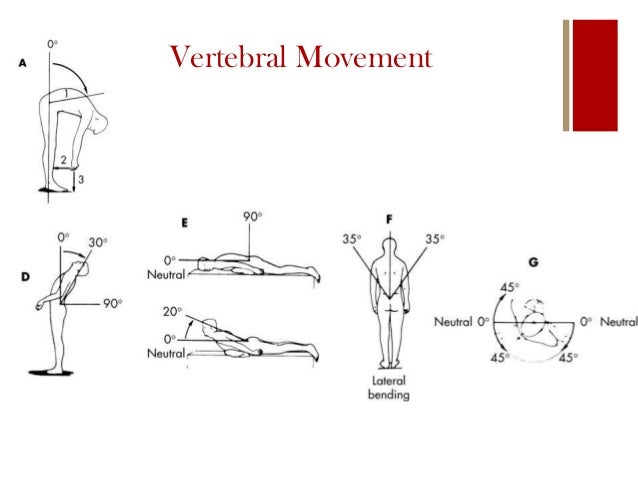

    17. 17. +Vertebral Movement

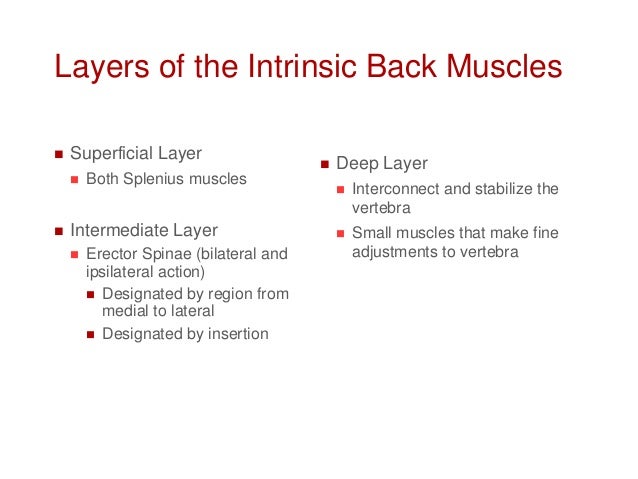

    18. 18. Layers of the Intrinsic Back Muscles Superficial Layer Both Splenius muscles Intermediate Layer Erector Spinae (bilateral andipsilateral action) Designated by region frommedial to lateral Designated by insertion Deep Layer Interconnect and stabilize thevertebra Small muscles that make fineadjustments to vertebra19

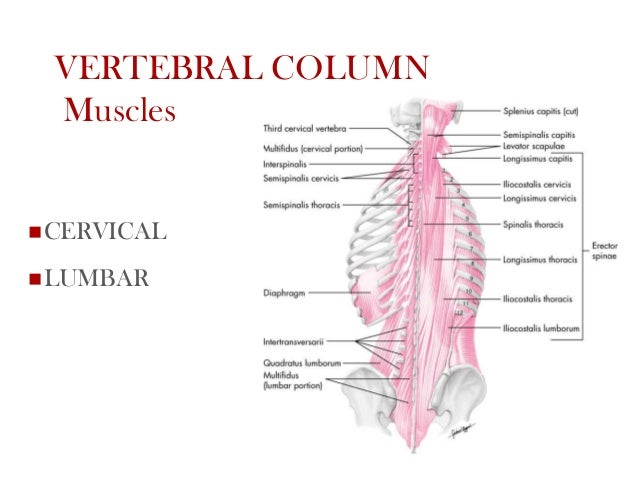

    19. 19. VERTEBRAL COLUMNMusclesCERVICALLUMBAR

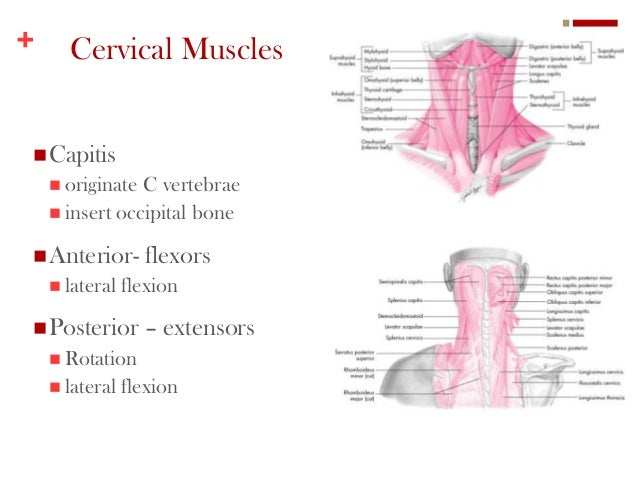

    20. 20. + Cervical MusclesCapitis originate C vertebrae insert occipital boneAnterior- flexors lateral flexionPosterior – extensors Rotation lateral flexion

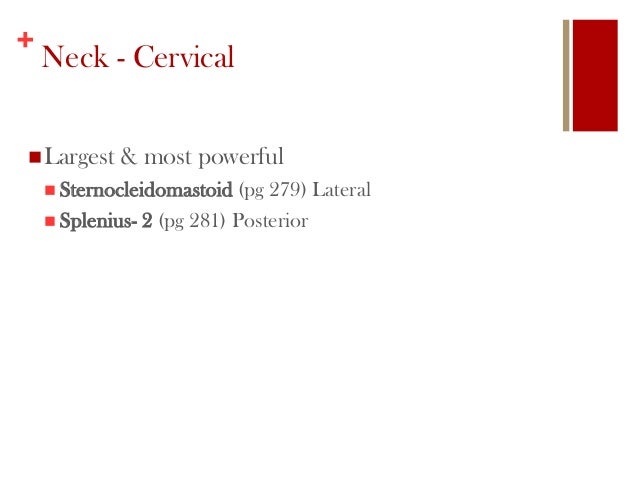

    21. 21. +Neck - CervicalLargest & most powerful Sternocleidomastoid (pg 279) Lateral Splenius- 2 (pg 281) Posterior
    22. 22. SternocleidomastoidOrigin Sternal manubrium,medial clavicleInsertion Mastoid process oftemporal boneLocation: LateralMovements Flexion Lateral (ipsilateral) flexion Rotation (contralateral)
    23. 23. Splenius CapitisOrigin (inferior) Spinous process of C7-T4Insertion Mastoid process & occipital boneLocation: PosteriorMovements Cervical Spine: Extension Ipsilateral rotation, ipsilateral flexion

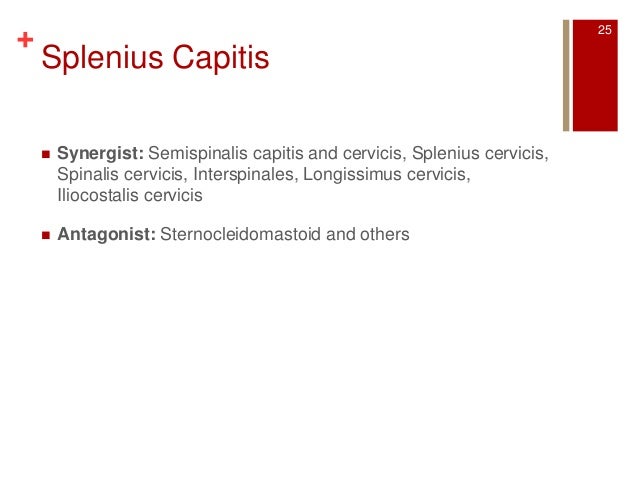

    24. 24. +Splenius Capitis Synergist: Semispinalis capitis and cervicis, Splenius cervicis,Spinalis cervicis, Interspinales, Longissimus cervicis,Iliocostalis cervicis Antagonist: Sternocleidomastoid and others25

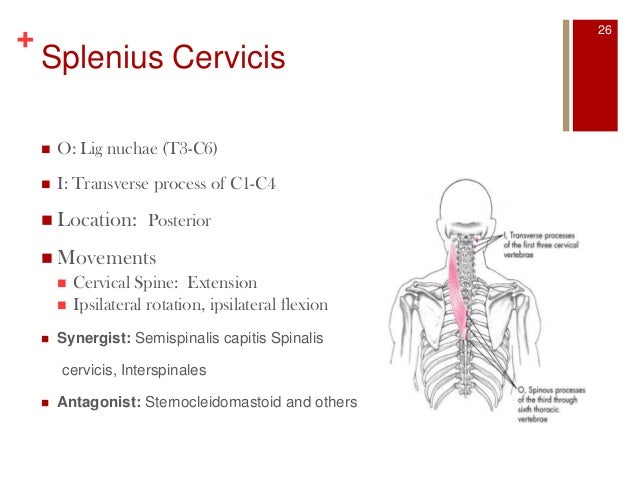

    25. 25. +Splenius Cervicis O: Lig nuchae (T3-C6) I: Transverse process of C1-C4 Location: Posterior Movements Cervical Spine: Extension Ipsilateral rotation, ipsilateral flexion Synergist: Semispinalis capitis Spinaliscervicis, Interspinales Antagonist: Sternocleidomastoid and others26

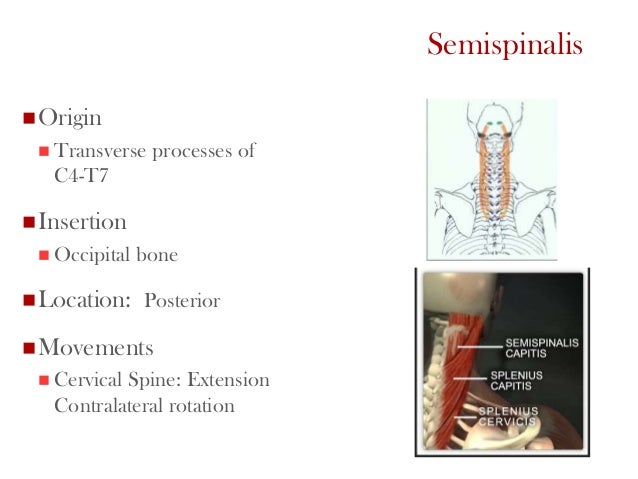

    26. 26. SemispinalisOrigin Transverse processes ofC4-T7Insertion Occipital boneLocation: PosteriorMovements Cervical Spine: ExtensionContralateral rotation
    27. 27. Trunk - LumbarAnterior Rectus Abdominis External Oblique Internal ObliquePosterior Erector Spinae

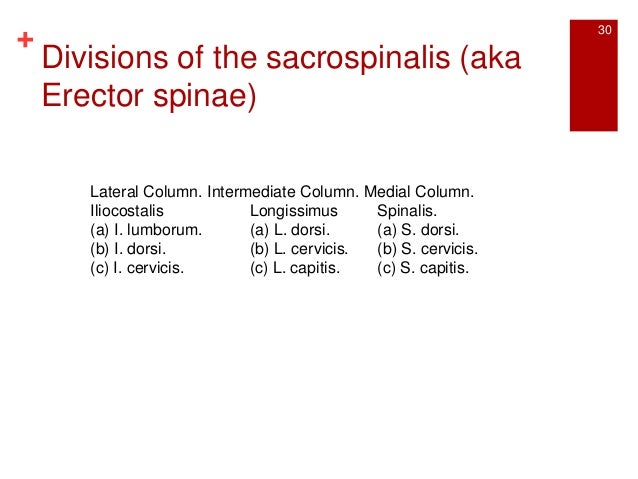

    28. 28. +Divisions of the sacrospinalis (akaErector spinae)30Lateral Column. Intermediate Column. Medial Column.Iliocostalis Longissimus Spinalis.(a) I. lumborum. (a) L. dorsi. (a) S. dorsi.(b) I. dorsi. (b) L. cervicis. (b) S. cervicis.(c) I. cervicis. (c) L. capitis. (c) S. capitis.
    29. 29. Erector Spinae(sacrospinalis) Origin Sacrum, spinous processes oflower two thoracic & alllumbar Insertion Transverse and spinousprocesses as well as ribs andskull Location: Posterior Movements (spine) Extension (C & L) Ipsilateral flexion (C & L)Iliocostalis Longissimus Spinalis

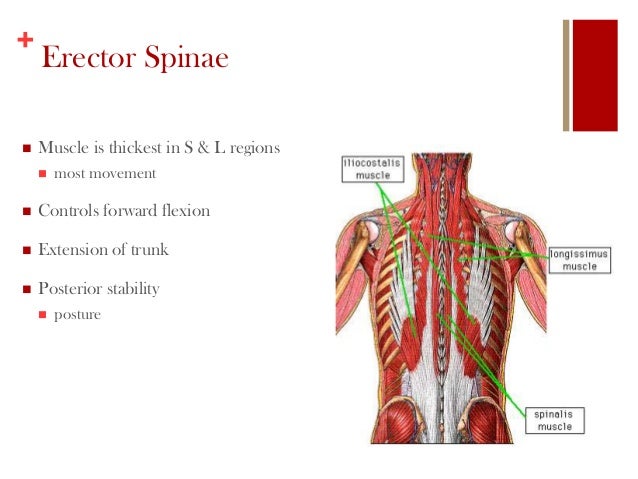

    30. 30. +Erector Spinae Muscle is thickest in S & L regions most movement Controls forward flexion Extension of trunk Posterior stability posture

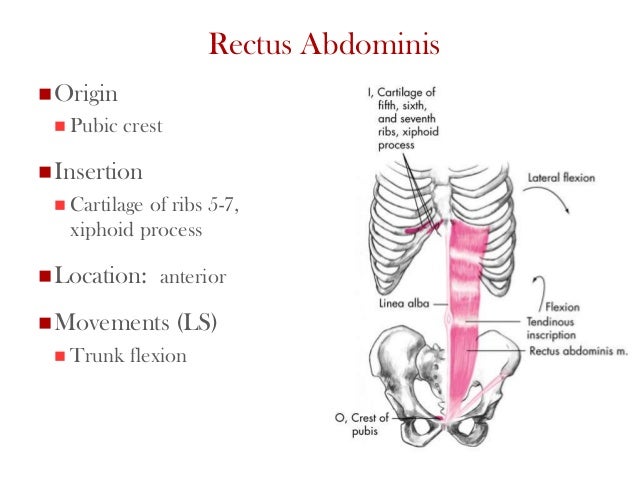

    31. 31. Rectus AbdominisOrigin Pubic crestInsertion Cartilage of ribs 5-7,xiphoid processLocation: anteriorMovements (LS) Trunk flexion

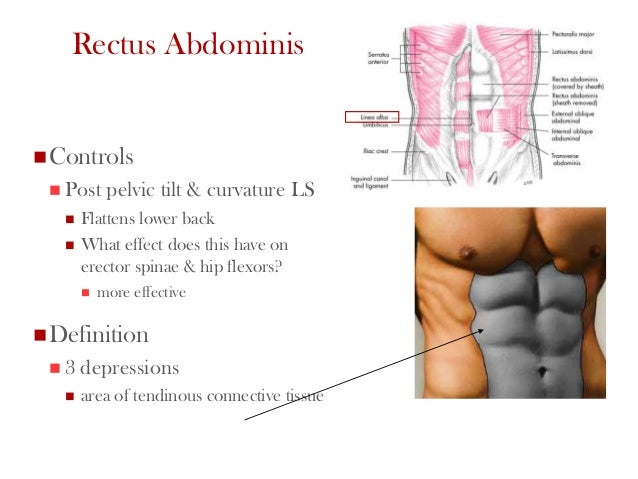

    32. 32. Rectus AbdominisControls Post pelvic tilt & curvature LS Flattens lower back What effect does this have onerector spinae & hip flexors? more effectiveDefinition 3 depressions area of tendinous connective tissue

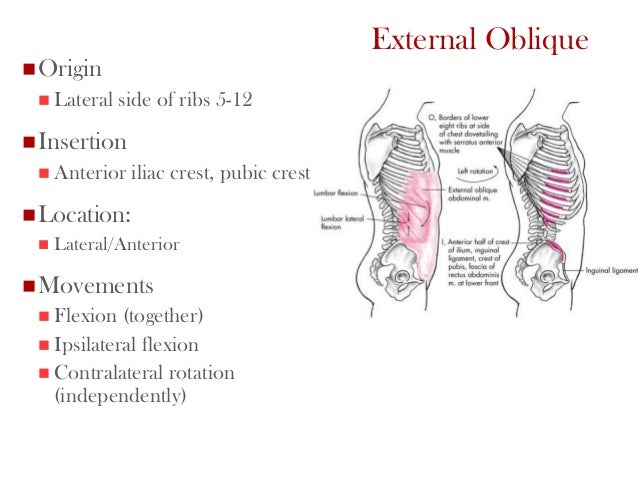

    33. 33. External ObliqueOrigin Lateral side of ribs 5-12Insertion Anterior iliac crest, pubic crestLocation: Lateral/AnteriorMovements Flexion (together) Ipsilateral flexion Contralateral rotation(independently)

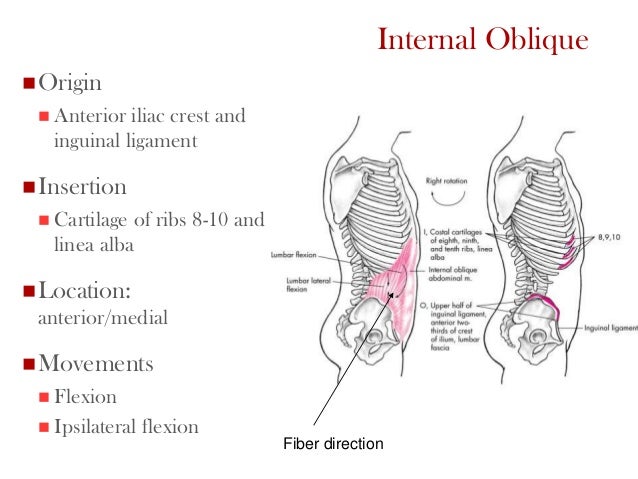

    34. 34. Internal ObliqueOrigin Anterior iliac crest andinguinal ligamentInsertion Cartilage of ribs 8-10 andlinea albaLocation:anterior/medialMovements Flexion Ipsilateral flexionFiber direction

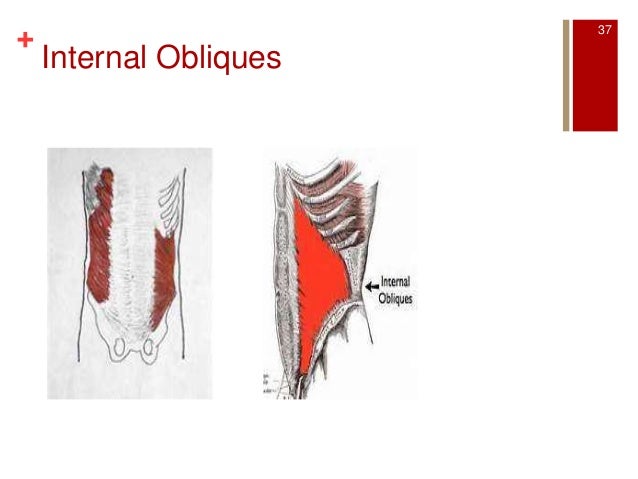

    35. 35. +Internal Obliques37

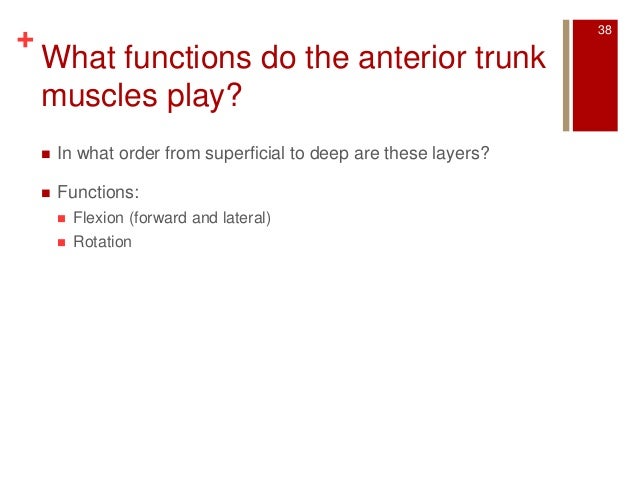

    36. 36. +What functions do the anterior trunkmuscles play? In what order from superficial to deep are these layers? Functions: Flexion (forward and lateral) Rotation38

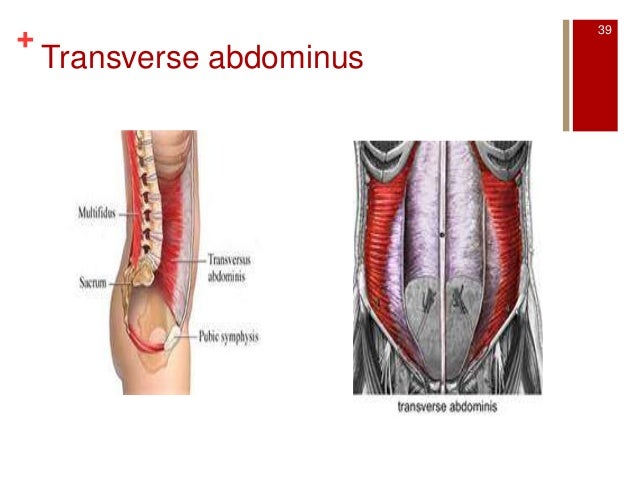

    37. 37. +Transverse abdominus39

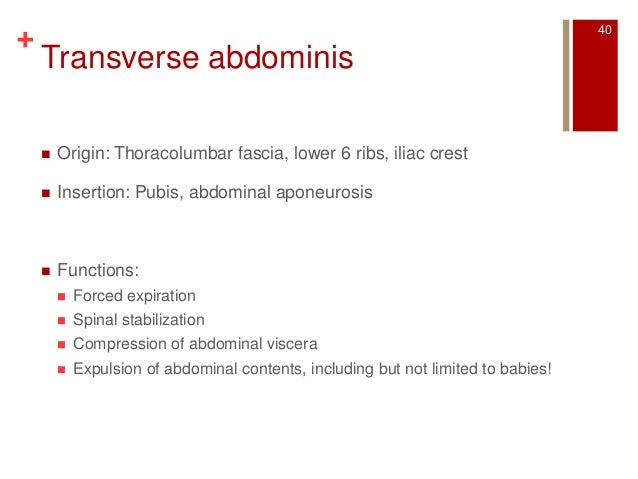

    38. 38. +Transverse abdominis Origin: Thoracolumbar fascia, lower 6 ribs, iliac crest Insertion: Pubis, abdominal aponeurosis Functions: Forced expiration Spinal stabilization Compression of abdominal viscera Expulsion of abdominal contents, including but not limited to babies!40
    39. 39. +Exercise Find: Acromian Process Cocochoid process Greater tubercle Medial and lateral epicondyles Spine of scapula Inferior angle of scapula Iliac crest C7 and L141

    ×
