The Royal Society of Chemistry hosts an online resource, ChemSpider, as a structure centric database for chemists linking over 25 million chemicals to 400 internet sites. As a crowdsourced environment …

The Royal Society of Chemistry hosts an online resource, ChemSpider, as a structure centric database for chemists linking over 25 million chemicals to 400 internet sites. As a crowdsourced environment members of the chemistry community can deposit spectral data to the database. Almost 2000 NMR spectra have been submitted to the database and these are the basis of both a gaming environment for learning NMR spectroscopy, the SpectralGame, as well as a new teaching environment known as SpectraSchool. This presentation will provide an overview of these two online resources and how they may be utilized for the purpose of teaching NMR spectroscopy in an Undergraduate Curriculum.

More in: Technology , Education
  • Full Name Full Name Comment goes here.
    Are you sure you want to
    Your message goes here
No Downloads

Views

Total Views
3,112
On Slideshare
0
From Embeds
0
Number of Embeds
4

Actions

Shares
Downloads
70
Comments
2
Likes
3

Embeds 0

No embeds

Report content

Flagged as inappropriate Flag as inappropriate
Flag as inappropriate

Select your reason for flagging this presentation as inappropriate.

Cancel
    No notes for slide

Transcript

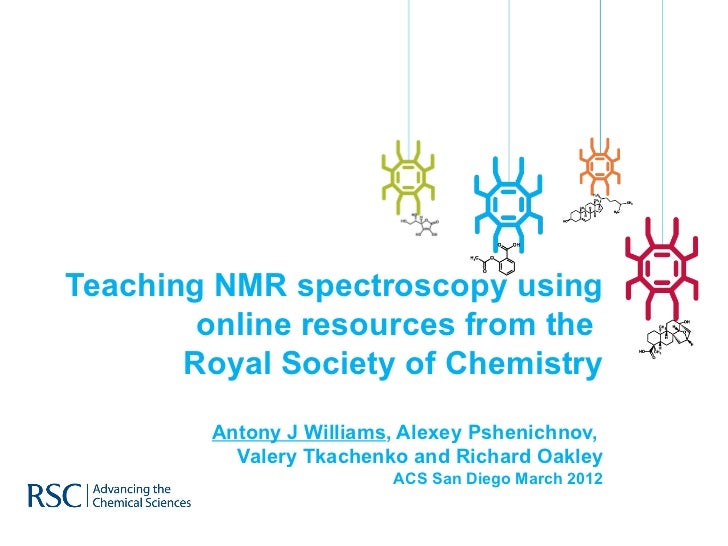

  • 1. Teaching NMR spectroscopy using online resources from the Royal Society of Chemistry Antony J Williams, Alexey Pshenichnov, Valery Tkachenko and Richard Oakley ACS San Diego March 2012
