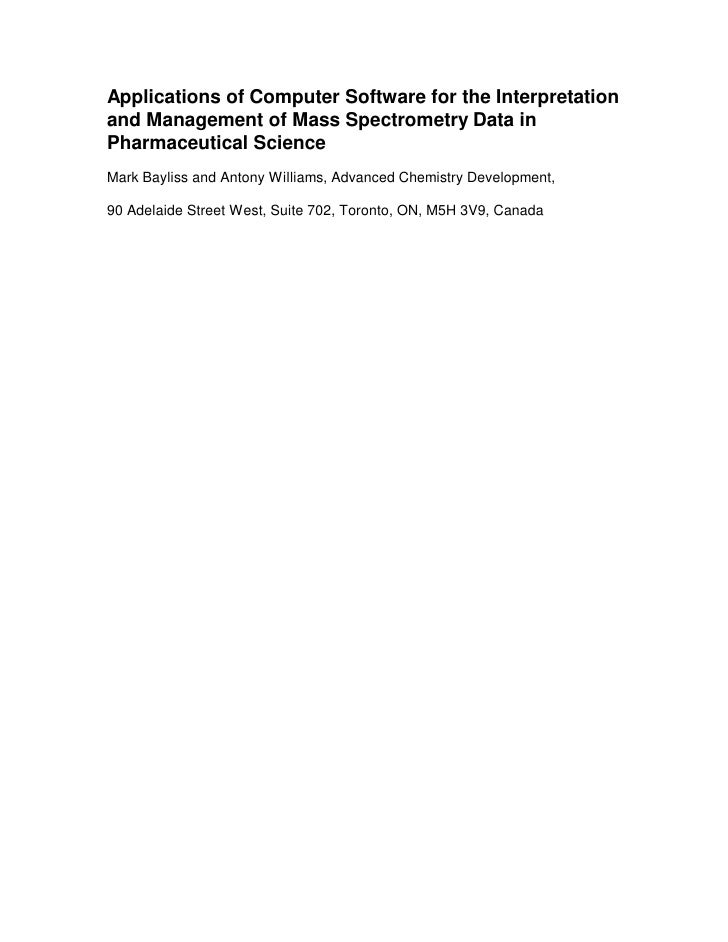

Applications of Computer Software for the Interpretation
and Management of Mass Spectrometry Data in
Pharmaceutical Scienc...
Abstract

       Within the last decade there has been a rapid growth in the adoption of

Mass Spectrometry (MS) as a rout...
becomes an integral, critical and enabling part of the cycle of information

creation in support of compound development a...
In this chapter we intend to present, review and discuss some of the non-

instrument related software systems that exist ...
the hardware itself. Today, the need to integrate appropriate method

development strategies with MS processing capabiliti...
In general, non-specialists are adopting MS instrumentation that

predominantly generates molecular ion only MS with littl...
computer software applications additional to those required for operation of the

instrument are a necessary and integral ...
more detectors, as in a lack of chromophore for example does lead to a lack of

detector response. The use of more than on...
by searching for masses within the dataset that differ by some delta mass (∆M)

from the compound of interest, such as a p...
application of CODA. The output from the CODA approach can also be

visualized in the form of individual mass chromatogram...
Structural Elucidation Using MS Data

       The elucidation of chemical structure(s) covers an extremely wide arena

of p...
applicability when used in conjunction with tandem MS spectral peaks [9]. This

has been found to assist greatly in the de...
or product ion mass spectra of the parent compound serve as the template for

identification. The template structure ident...
cations are highly characteristic and are thus diagnostic. The incorporation of

NMR data [1H NMR, 13C NMR, 2D NMR data an...
The method by which a spectrum is obtained can have a significant effect

on the way in which the structure can be elucida...
procedure. This is clearly identified in the fragmentation of Temazepam,

Figure 7, in which the 37Cl contributes a signif...
Owens [17] reports a software based technique of spectral correlation or pattern

matching of MS/MS spectra and the determ...
predicted using the coded rule sets, thus significantly reducing the amount of

time that it takes to perform a series of ...
a single spectrum due to co-elution, then each component can be individually

assigned.

Structure as a Means of Communica...
chemical knowledge that can be transformed into extractable programmatical

elements that can be used in software platform...
been extended to more complex structures where the positions of attachment

are discontinuous as depicted in Figure 13. Th...
include for example NuGenesis Technologies [24]. A further discussion of

databasing is covered later within this Chapter....
Markush structure searching in a variety of ways over and above the standard

structure search capabilities. For example, ...
Over the years collections of mass spectra have been collected by

different groups. The National Institutes of Health (NI...
be entered in many different ways. If the values are not entered into the

database tables in the same data fields then th...
exciting addition to the information content that can be stored within proprietary

and commercial databases.

       Once...
ionization techniques and accurate mass data, proprietary databases can

certainly be of significantly higher value than c...
based searches to identify compounds within a specific dataset or library that

contains a distinct substructural entity [...
confirmation that the correct product was synthesized. In most cases a simple

determination of molecular weight may be su...
advantages for on-line, and perhaps, real-time analysis [31]. Arguably the most

significant bottleneck that exists in ind...
Spectrometrists and chromatographers utilize a variety of technologies to

both separate and identify chemical structures....
tools now exist to allow the similar integration of chromatographic peaks and

chemical structures.

         Resulting sp...
the ability to point to databases located on mapped network drives. Corporate-

wide database capability engenders concern...
higher mass resolution and higher mass accuracies and hence the tools

necessary to manage this data will need to be furth...
Figure 1: A multi-spectroscopic display of Alizarin. UV (top), IR (middle) and MS

(bottom) contained within a single disp...
Figure 2: Example showing the reduction in chemical and electronic noise using

chemometric algorithms (CODA used for this...
Figure 3: Following the process of COMPARELCMS, mass chromatograms that

are determined to be unique when a control sample...
Figure 4: An Isotope Pattern Calculator showing Nominal, Average and

Monoisotopic masses
Figure 5: The EI MS spectrum of ethyl pirimiphos [O-[2-(diethylamino)-6-

methylpyrimidin-4-yl] O,O-diethyl thiophosphate]...
Figure 6: A series of proposed fragment structures with nominal mass m/z 152

for the fragmentation of ethyl pirimiphos. (...
Figure 7: The nominal electron ionization (EI) mass spectrum and structure for
                                           ...
Figure 8: The assignment of the N-Oxide buspirone MS/MS spectrum using the

“lasso tool” (Left inset box “Stage 1 Lasso st...
Figure 9: Chloroaniline without the position of the chloro group being specified




                                  NH ...
Figure 10: Incomplete structure representation using graphical elements such as

shaded boxes




                        ...
Figure 11: Incomplete structure representation using Polymer brackets




                               O



            ...
Figure 12: Suggested hydroxylation of a buspirone metabolite represented using

the shaded Markush structural representati...
Figure 13: Representation of a Markush structure for a discontinuous series of

attachment positions

                O
  ...
Figure 14: Structure attachment of Theophylline to its associated EI Spectrum.

Note that the structure is understood at a...
Figure 15: The results of a complete structure search of the NIST98 [27]

database of a Markush structure where the positi...
Figure 16: The results of a substructure search of the NIST98 [27] database of a

Markush structure where the position of ...
Figure 17: The most similar match (87.9% match factor – see bottom middle) for

the spectral search displays the spectrum ...
REFERENCES
1 Third party vendors providing software solutions for integrated spectroscopy

processing include a) Advanced ...
7 Windig, W., Payne, A., Nichols, W., A Noise and Background Reduction

Method for Component Detection in Liquid Chromatog...
Elucidation of a Novel Indoloquinoline Alkaloid Structure through the use of

Computer-Assisted Structure Elucidation and ...
21 Lam W., Ramanathan R., In Electrospray Ionization Source

Hydrogen/Deuterium Exchange LC-MS and LC-MS-MS for Characteri...
28 Kerns, E.H., Rourick, R.A., Volk, K.J., Lee, M.S. Buspirone Metabolite

Structure Profile Using a Standard Liquid Chrom...
