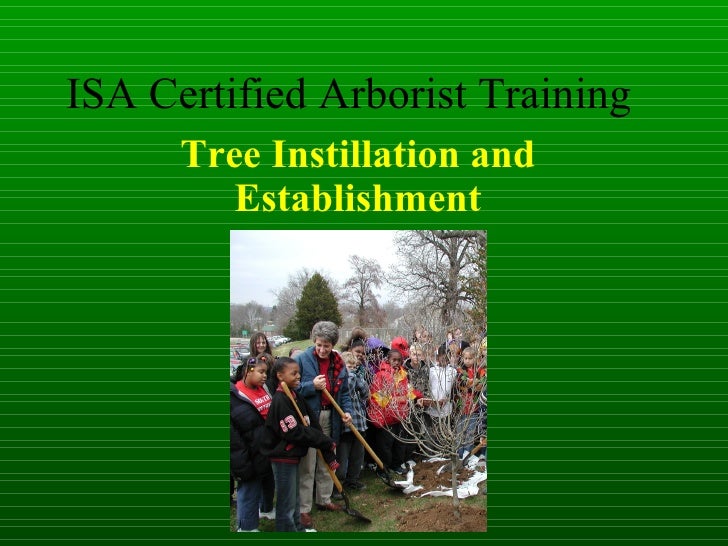

ISA Certified Arborist Training Tree Instillation and Establishment
Tree Planting <ul><li>Many stresses and physiological disorders can be traced to poor planting practices </li></ul><ul><li...
When to plant <ul><li>If planted in the fall after leaf drop, roots may begin establishment before dormancy </li></ul><ul>...
Three types of planting stock <ul><li>Bare root </li></ul><ul><li>Containerized (potted) </li></ul><ul><li>Balled and Burl...
Bare root
Bare Root <ul><li>Small and easy to transplant </li></ul><ul><li>No soil on the roots, very light </li></ul><ul><li>Roots ...


Planting Bare Root <ul><li>Bare-root trees should be planted on small compact mounds within the planting holes </li></ul><...
Containerized <ul><li>Are grown or placed in a container </li></ul><ul><li>Can be planted any time of year- if watered an ...
Watch for encircling roots which could girdle the tree.

Don’t buy this tree
Not all containerized trees are container grown, be sure an established root system exists within the pot before purchase .
Container Planting   <ul><li>Always remove the container before planting, unless it is in a biodegradable pot  (and maybe ...
Balled and Burlapped – B&B <ul><li>Easier transplanting of larger sizes </li></ul><ul><li>Widely available and easy to fin...
B&B continued <ul><li>Burlap used to wrap the root ball supports the the root system and prevents drying by reducing roots...
Handling trees <ul><li>Transporting- Always cover trees on a trailer or in a truck bed to prevent wind burn.  Be careful n...
Planting a Tree <ul><li>Dig the planting hole two to three times wider than the container or root ball </li></ul><ul><ul><...
<ul><li>Handle the tree by the container or root ball not the trunk. </li></ul>
<ul><li>Carefully cut and remove any twine wrapped around the trunk at the top of the root ball. </li></ul><ul><li>Remove ...
<ul><li>Never plant deeper then the tree is in the root </li></ul><ul><li>ball or container. Laying a board or pole across...
Root flare <ul><li>Find the proper planting depth is very important for establishment  </li></ul>
Planting Depth <ul><li>Planting too deep is a common problem that can lead to tree stress or death </li></ul><ul><li>Soft ...

Tree planted shallow in heavy soil to prevent ‘drowning’

How roots grow in the planting hole  Most root growth is shallow and horizontal
<ul><li>Backfill the hole with loose soil </li></ul><ul><li>Do not amend the soil – Use what came out of the hole </li></ul>
<ul><li>Saturate the hole with water </li></ul><ul><li>Add more soil if needed </li></ul>
<ul><li>Cover the planting area with 3 inches of mulch. </li></ul><ul><li>Do not pile mulch against the trunk! </li></ul>
<ul><li>Remove all ties and any stakes that came with the tree! </li></ul>
Staking & Guying <ul><li>Staking may be needed to protect the tree from equipment and people. </li></ul><ul><li>Do not guy...

Staking <ul><li>Staking should be avoided if possible </li></ul><ul><li>Staking may help protect the tree from vandalism <...
Watering <ul><li>Water is the single most important need of newly planted trees. </li></ul><ul><li>Moist but not wet </li>...
Mulch <ul><li>Conserves moisture </li></ul><ul><li>Retards grass and weeds </li></ul><ul><li>Reduces soil temperature </li...
Not enough mulch
Too much mulch
The best case scenario
Other important points <ul><li>Fertilization is often not recommended at the time of planting </li></ul><ul><li>Pruning im...
More points <ul><li>Tree guards maybe useful but need to be lose fitting and allow for air circulation </li></ul><ul><li>A...
Transplanting <ul><li>In general the best time to transplant is in the early spring or late fall when the tree is dormant ...
Transplanting <ul><li>1 st  cuts made with sharp axe- clean cuts, avoid tearing or breaking roots </li></ul><ul><li>If dug...
Tree Spade <ul><li>Mechanical tree digger that comes in various sizes </li></ul><ul><li>If a spade is used to dig the plan...
Transplanting <ul><li>After trees are dug from the field they are </li></ul><ul><li>sometimes  Hardened off  in a protecte...
Transplanting Size <ul><li>Measure 12” above the root flare (hopefully ground level) to determine diameter </li></ul><ul><...
Wrong tree for your driveway
Wrong site for any tree
Wrong tree for a small site
Wrong site
Too close to van
Wrong species for the tree lawn
What wrong with this planting?

Planting space too small
Root Girdled Tree
Twine not removed at planting
Girdling root
Key Terms <ul><li>Balled and Burlapped </li></ul><ul><li>Bare root </li></ul><ul><li>Container grown </li></ul><ul><li>Con...
