Adam Kawa
Data Engineer @ Spotify
Hadoop Operations
Powered By …
Hadoop
1. How many times has Coldplay been streamed this
month?
2. How many times was “Get Lucky” streamed during
first 24h?
3. W...
1. What song to recommend Jay-Z when he wakes
up?
2. Is Adam Kawa bored with Coldplay today?
3. How to get Arun to subscri...
(Big) Data At Spotify
■ Data generated by +24M monthly active users
and for users!
- 2.2 TB of compressed data from users ...
Data Infrastructure At Spotify
■ Apache Hadoop YARN
■ Many other systems including
- Kafka, Cassandra, Storm, Luigi in pro...
■ Probably the largest commercial Hadoop cluster in
Europe!
- 694 heterogeneous nodes
- 14.25 PB of data consumed
- ~12.00...
March 2013
Tricky questions were asked!
1. How many servers do you need to buy to survive
one year?
2. What will you do to use them efficiently?
3. If we agree, d...
■ One of Data Engineers responsible for answering
these questions!
Adam Kawa

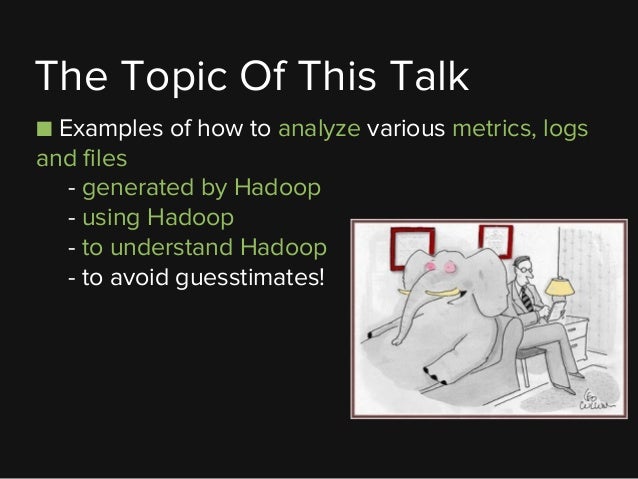

■ Examples of how to analyze various metrics, logs
and files
- generated by Hadoop
- using Hadoop
- to understand Hadoop
-...
■ This knowledge can be useful to
- measure how fast HDFS is growing
- define an empirical retention policy
- measure the ...
1. Analyzing HDFS
2. Analyzing MapReduce and YARN
Agenda
HDFS
Garbage Collection On
The NameNode
“ We don’t have any full GC pauses on the NN.
Our GC stops the NN for less than 100 msec,
on average!
:) ”
Adam Kawa @ Had...
“ Today, between 12:05 and 13:00
we had 5 full GC pauses on the NN.
They stopped the NN for 34min47sec in total!
:( ”
Adam...
What happened
between 12:05 and 13:00?
The NameNode was receiving the block reports from
all the DataNodes
Quick Answer!
1. We started the NN when the DNs were running

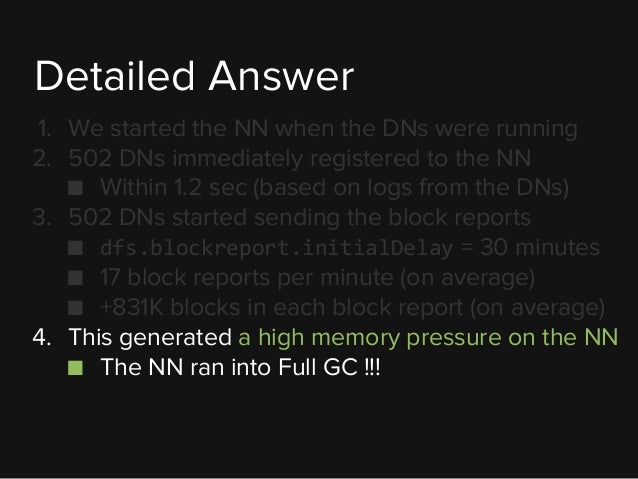

Detailed Answer

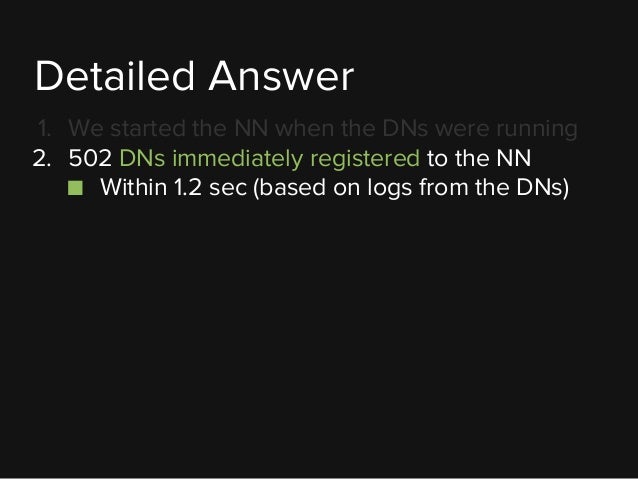

1. We started the NN when the DNs were running
2. 502 DNs immediately registered to the NN
■ Within 1.2 sec (based on logs...
1. We started the NN when the DNs were running
2. 502 DNs immediately registered to the NN
■ Within 1.2 sec (based on logs...

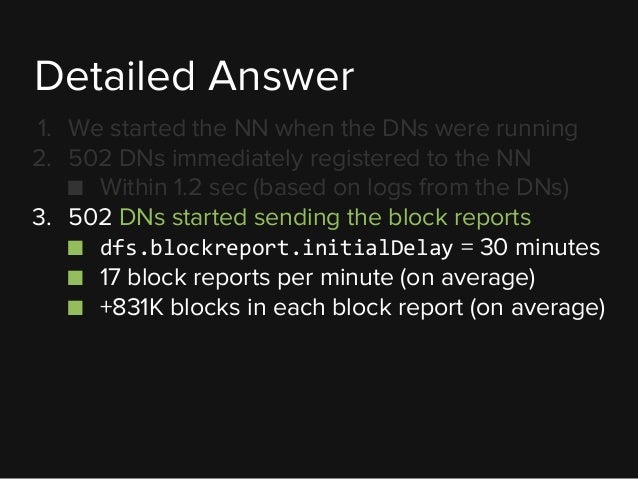

1. We started the NN when the DNs were running
2. 502 DNs immediately registered to the NN
■ Within 1.2 sec (based on logs...
Hadoop told us everything!
■ Enable GC logging for the NameNode
■ Visualize e.g. GCViewer
■ Analyze memory usage patterns, GC pauses,
misconfiguratio...

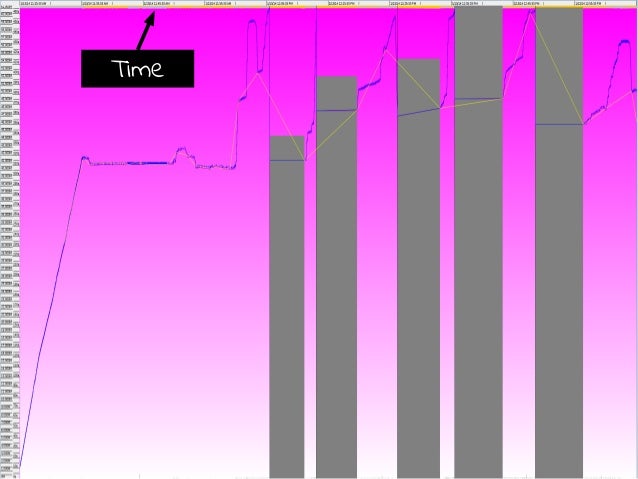

Time

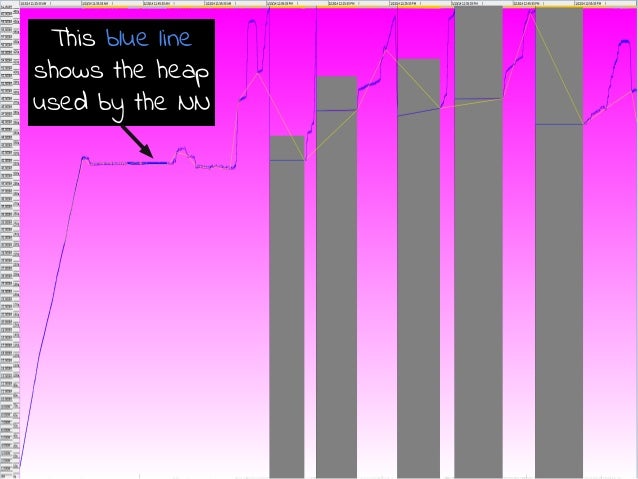

This blue line
shows the heap
used by the NN
Loading
FsImage

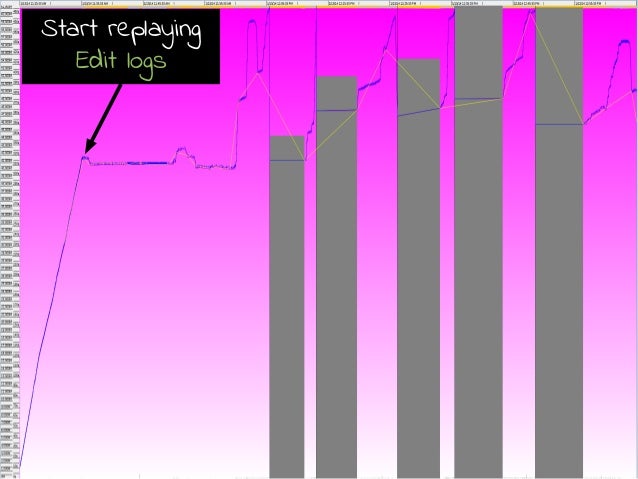

Start replaying
Edit logs

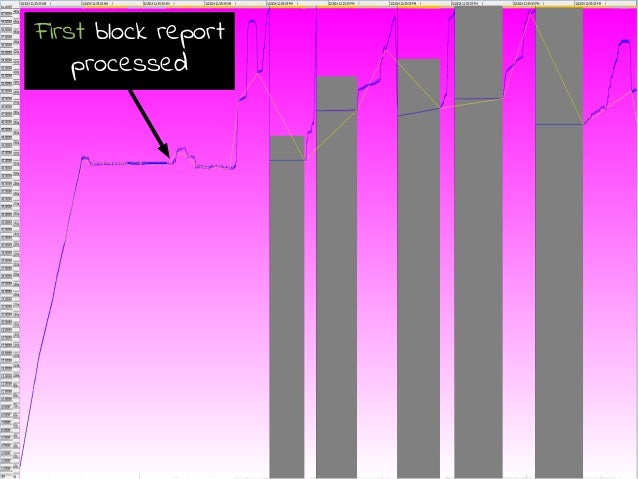

First block report
processed

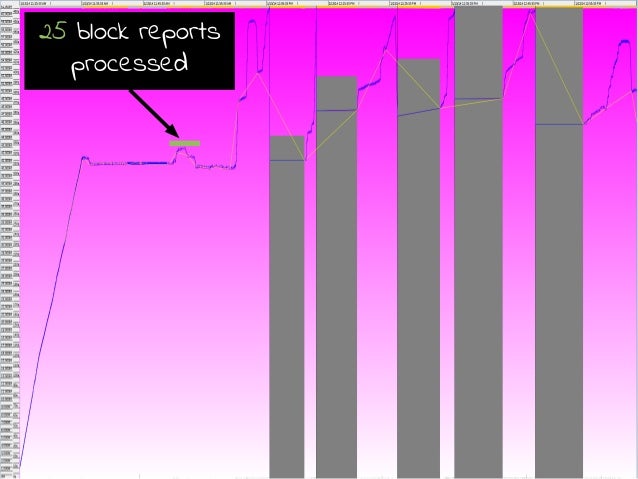

25 block reports
processed
131 block reports
processed

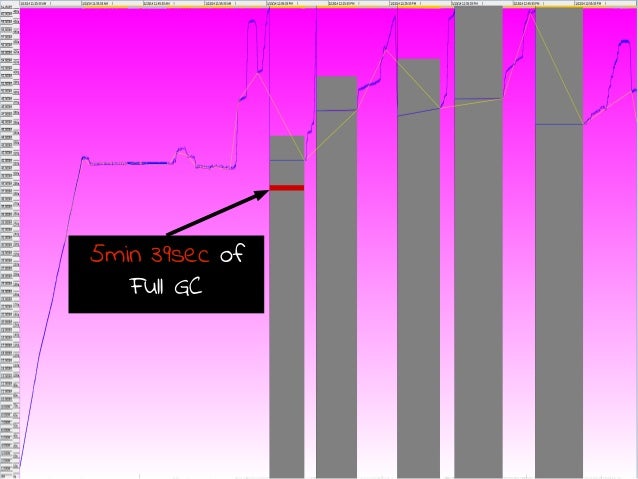

5min 39sec of
Full GC

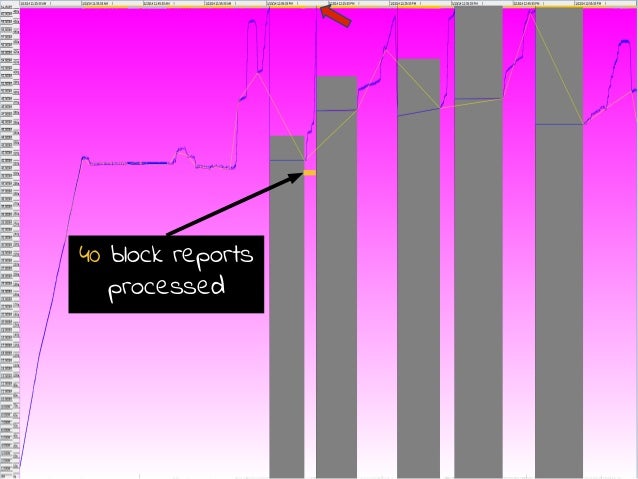

40 block reports
processed

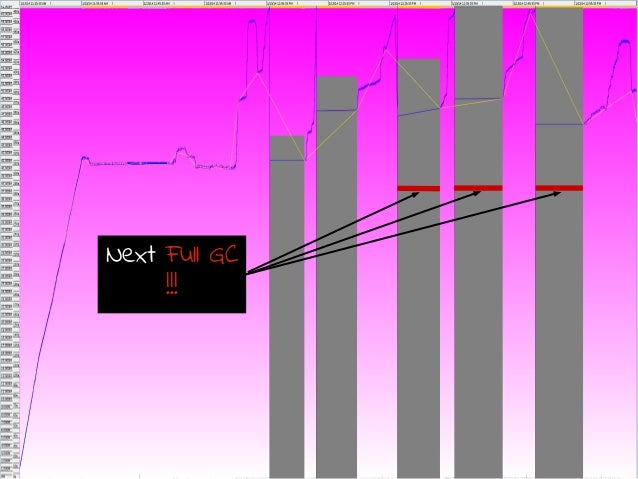

Next Full GC
Next Full GC
!!!

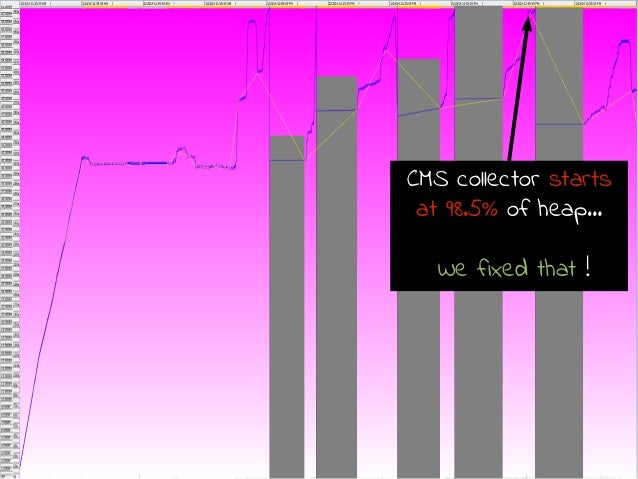

CMS collector starts
at 98.5% of heap…
We fixed that !
What happened in HDFS
between mid-December 2013
and mid-January 2014?
HDFS

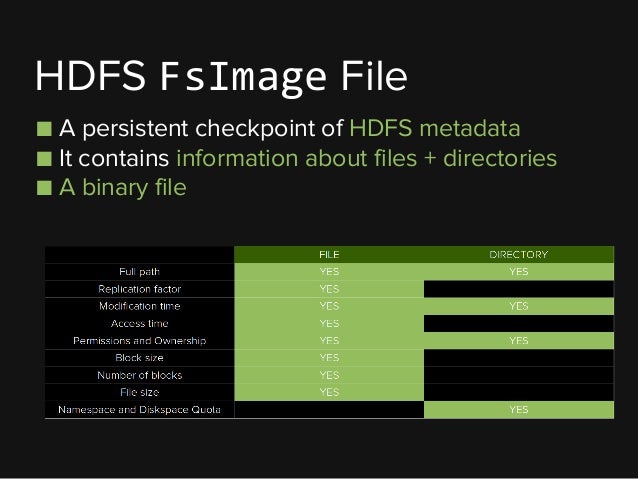

HDFS Metadata
■ A persistent checkpoint of HDFS metadata
■ It contains information about files + directories
■ A binary file
HDFS FsImag...

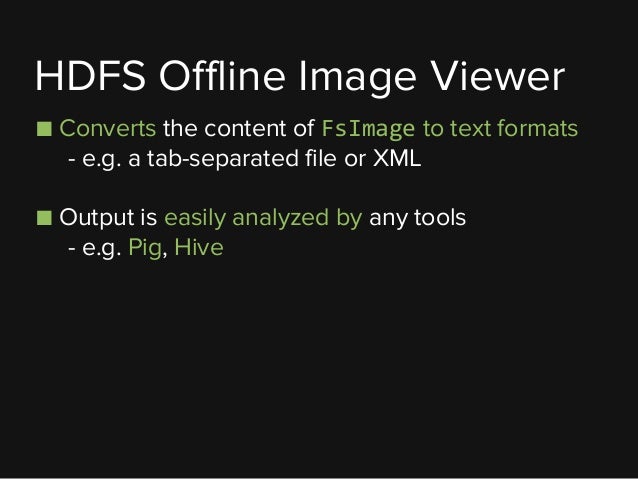

■ Converts the content of FsImage to text formats
- e.g. a tab-separated file or XML
■ Output is easily analyzed by any to...

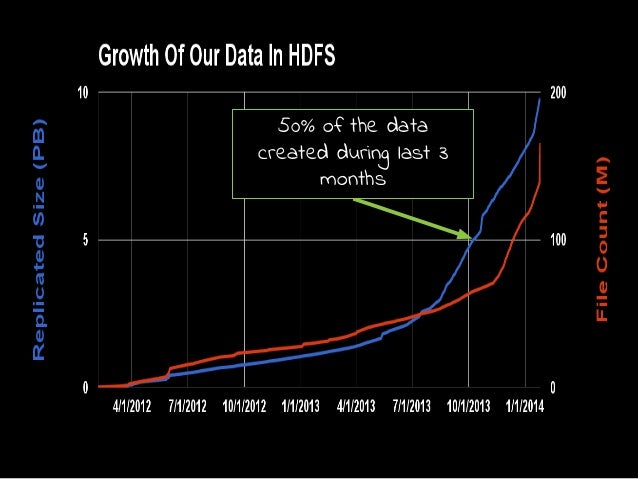

50% of the data
created during last 3
months

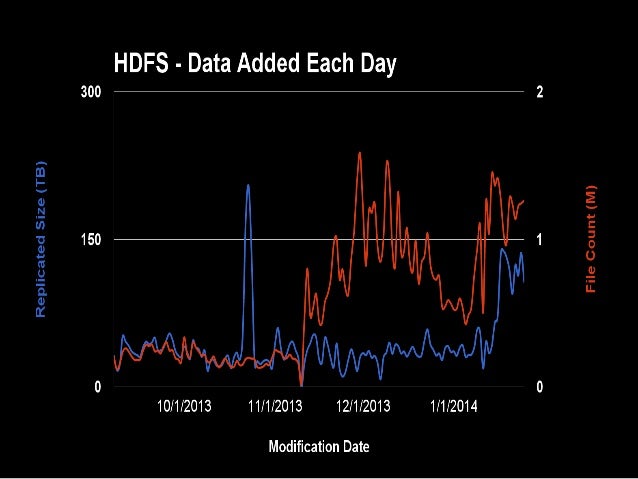

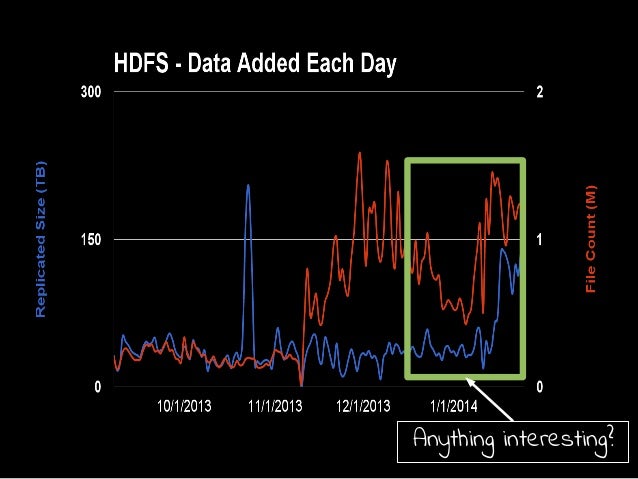

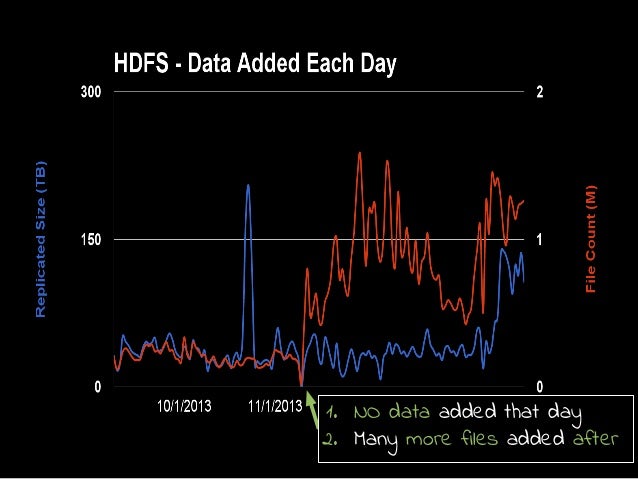

Anything interesting?
1. NO data added that day
2. Many more files added after

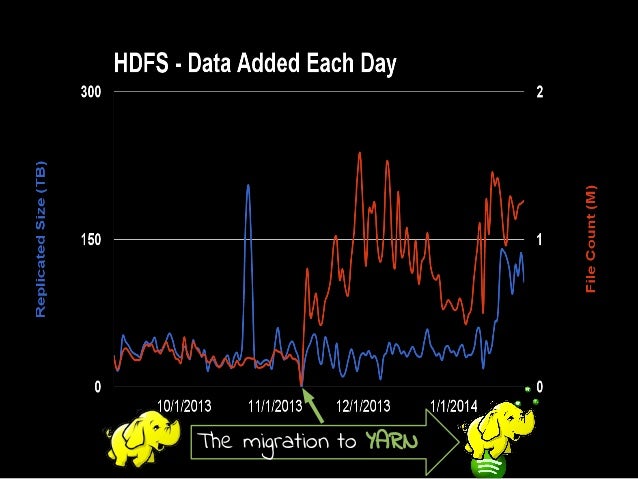

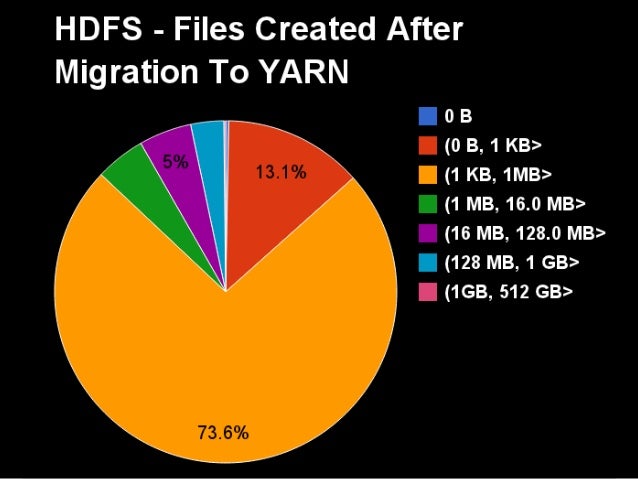

The migration to YARN
Where
did
the small files
come from?

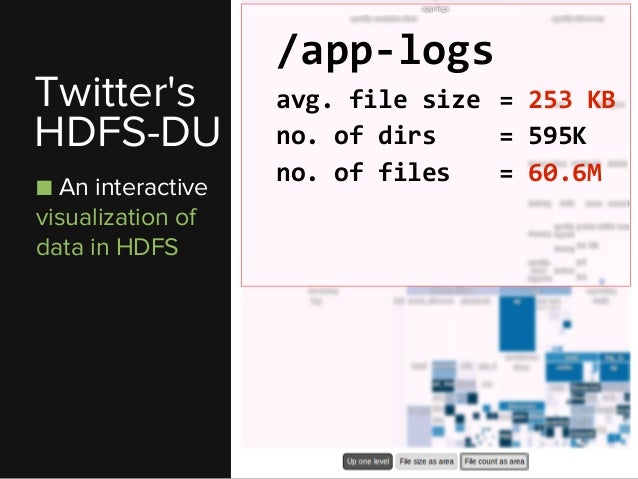

■ An interactive
visualization of
data in HDFS
Twitter's
HDFS-DU
/app-logs
avg. file size = 253 KB
no. of dirs = 595K
no. ...

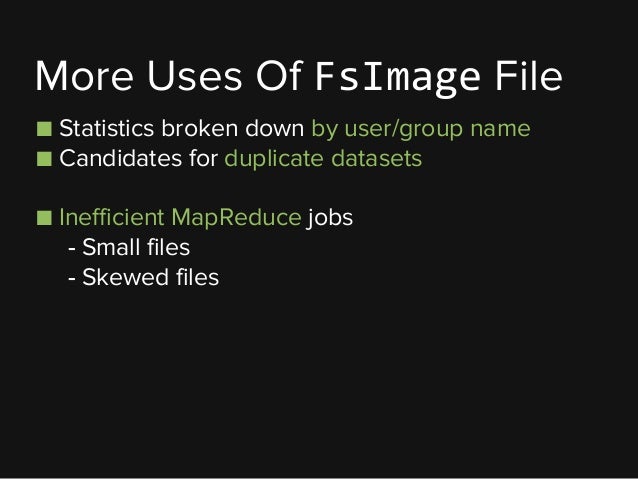

■ Statistics broken down by user/group name
■ Candidates for duplicate datasets
■ Inefficient MapReduce jobs
- Small files...
■ You can analyze FsImage to learn how fast HDFS
grows
■ You can combine it with “external” datasets
- number of daily/mon...

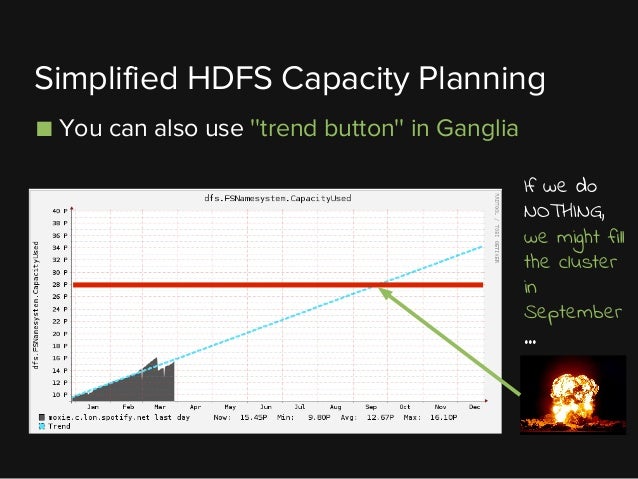

■ You can also use ''trend button'' in Ganglia
Simplified HDFS Capacity Planning
If we do
NOTHING,
we might fill
the clust...

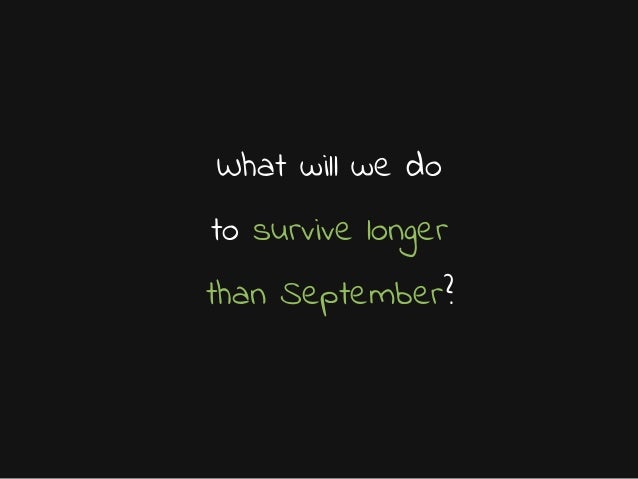

What will we do
to survive longer
than September?
HDFS
Retention
Question
How many days after creation, a dataset is not
accessed anymore?

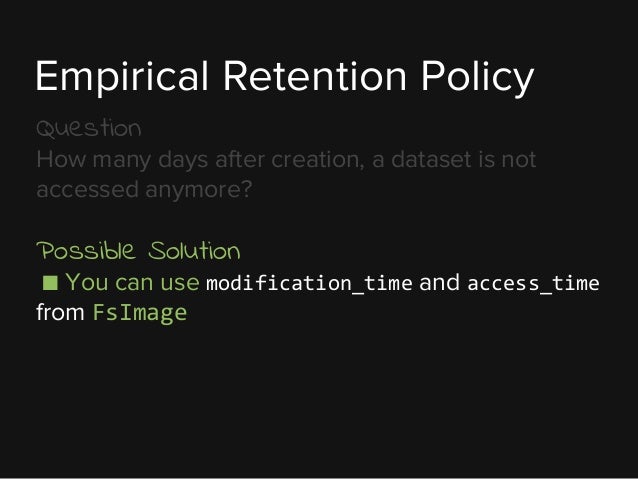

Retention Policy
Question
How many days after creation, a dataset is not
accessed anymore?
Possible Solution
■ You can use modification_tim...

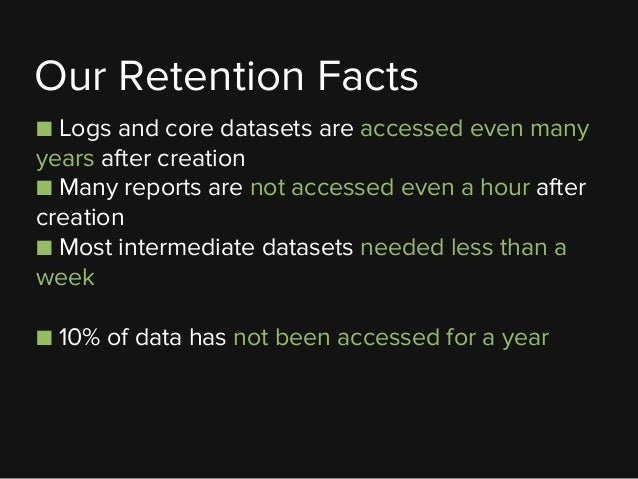

■ Logs and core datasets are accessed even many
years after creation
■ Many reports are not accessed even a hour after
cre...
HDFS

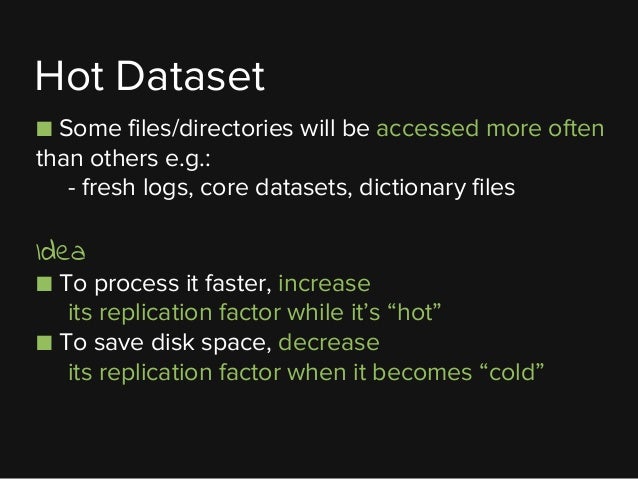

Hot Datasets
■ Some files/directories will be accessed more often
than others e.g.:
- fresh logs, core datasets, dictionary files
Idea
...
How to find them?

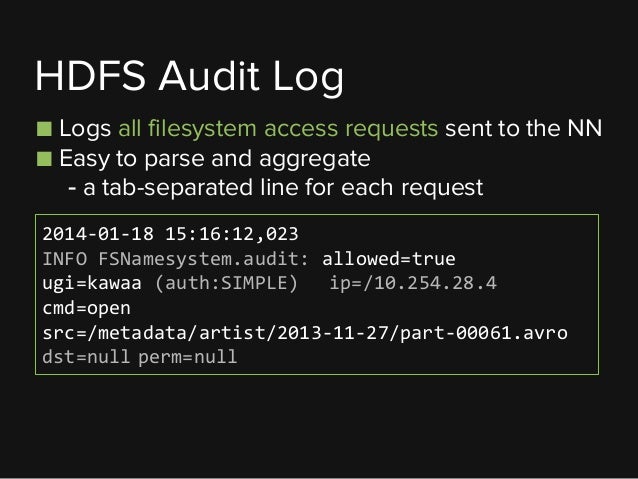

■ Logs all filesystem access requests sent to the NN
■ Easy to parse and aggregate
- a tab-separated line for each request...

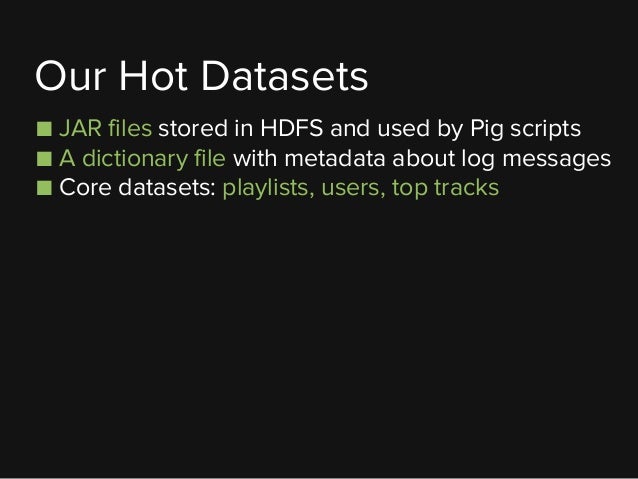

■ JAR files stored in HDFS and used by Pig scripts
■ A dictionary file with metadata about log messages
■ Core datasets: p...
YARN
MapReduce Jobs
Autotuning
■ There are jobs that we schedule regularly
- e.g. top lists for each country
Idea
■ Before submitting it next time, use s...

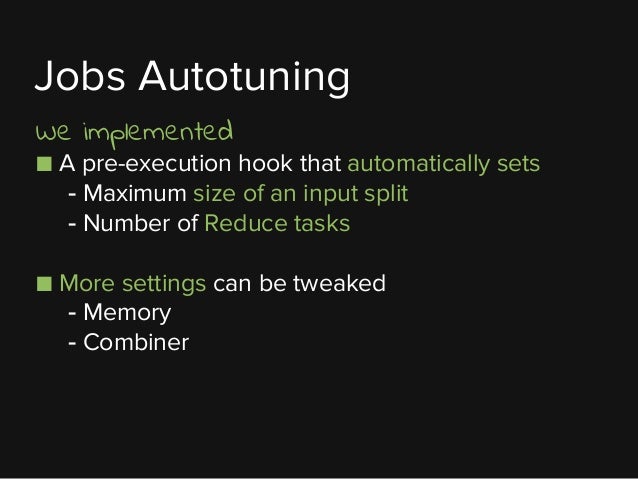

We implemented
■ A pre-execution hook that automatically sets
- Maximum size of an input split
- Number of Reduce tasks
■ ...

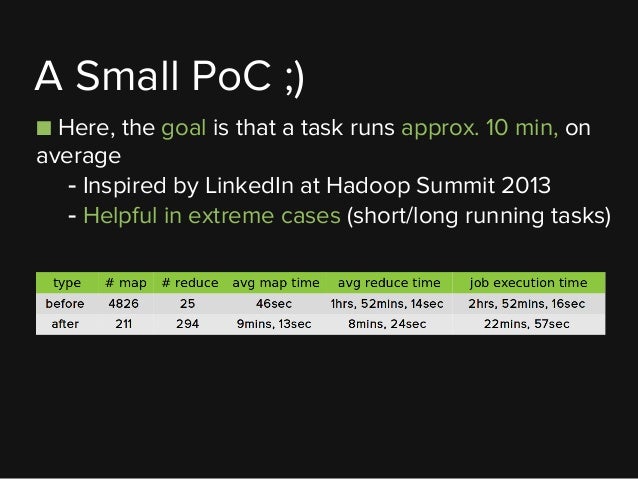

■ Here, the goal is that a task runs approx. 10 min, on
average
- Inspired by LinkedIn at Hadoop Summit 2013
- Helpful in ...
Another Example - Job Optimized Over Time
Even perfect manual settings
may become outdated
when an input dataset grows!
YARN
MapReduce Statistics
■ Extracts the statistics from historical MapReduce jobs
- Supports MRv1 and YARN
■ Stores them as Avro files
- Enables ea...

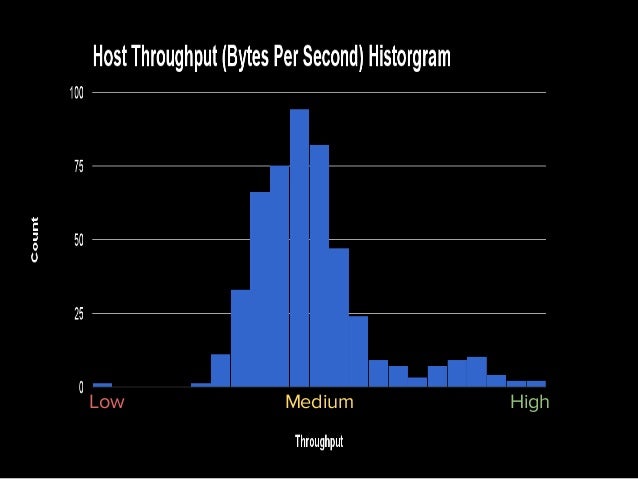

Low Medium High
A Slow Node
- 40% lower throughput than the average
Low Medium High

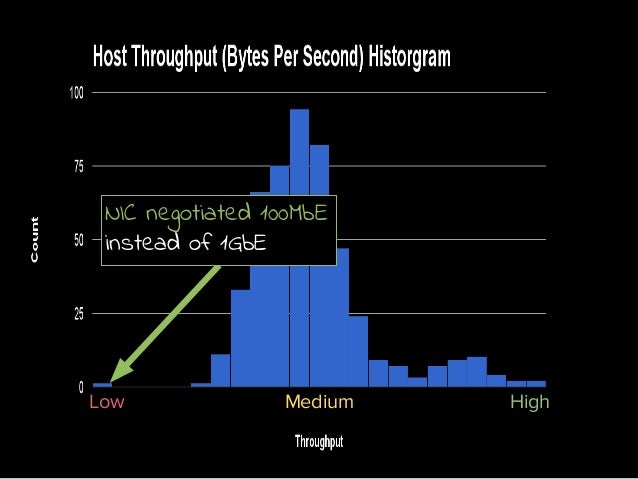

NIC negotiated 100MbE
instead of 1GbE
Low Medium High

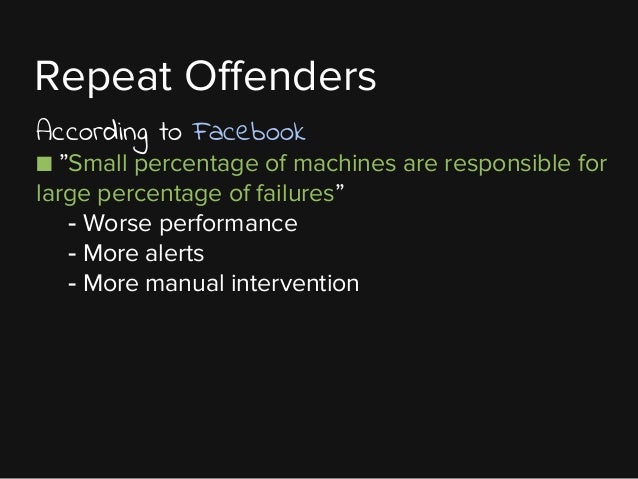

According to Facebook
■ ”Small percentage of machines are responsible for
large percentage of failures”
- Worse performanc...

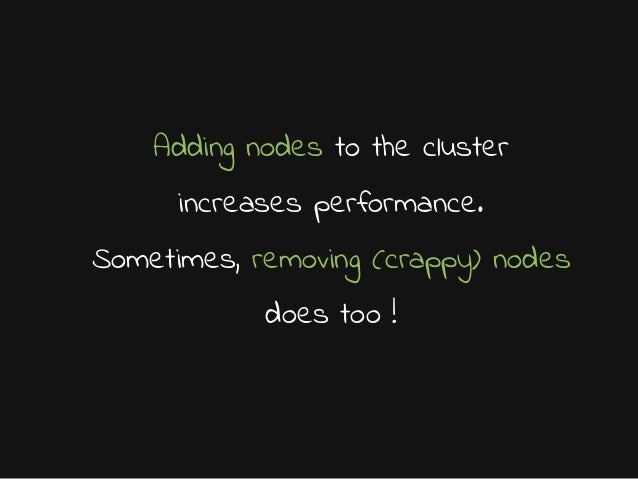

Adding nodes to the cluster
increases performance.
Sometimes, removing (crappy) nodes
does too !
Fixing
slow and failing
tasks as well !
YARN

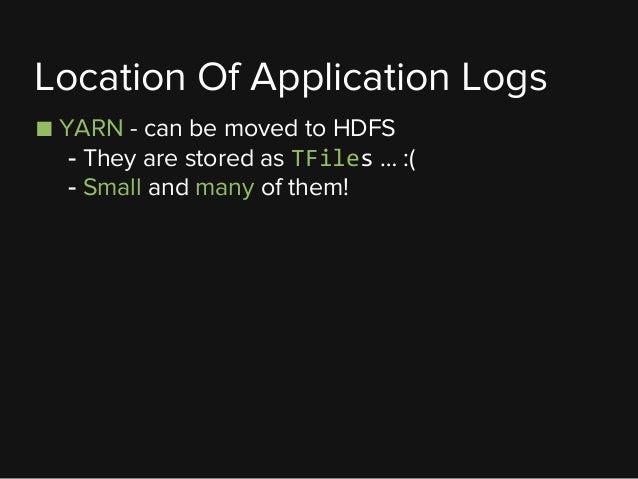

Application Logs
■ YARN - can be moved to HDFS
- They are stored as TFiles … :(
- Small and many of them!
Location Of Application Logs

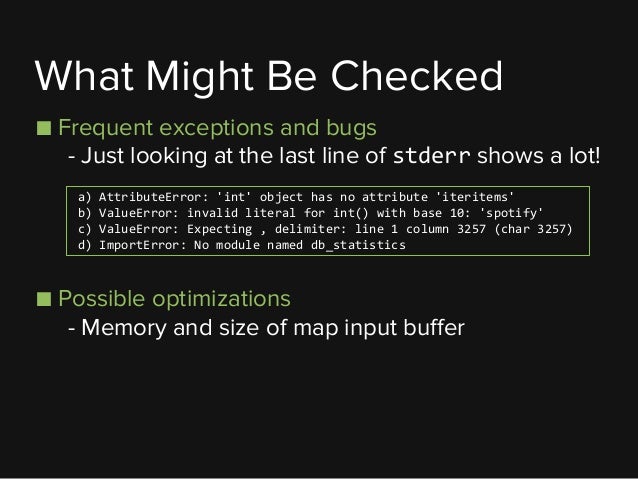

■ Frequent exceptions and bugs
- Just looking at the last line of stderr shows a lot!
■ Possible optimizations
- Memory an...
YARN
The Capacity Scheduler

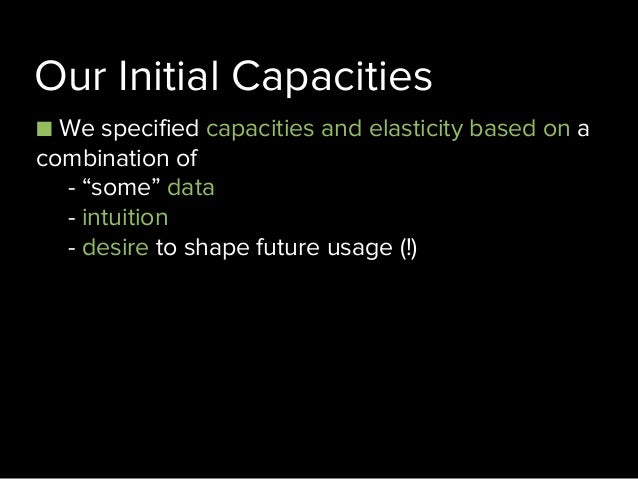

■ We specified capacities and elasticity based on a
combination of
- “some” data
- intuition
- desire to shape future usag...

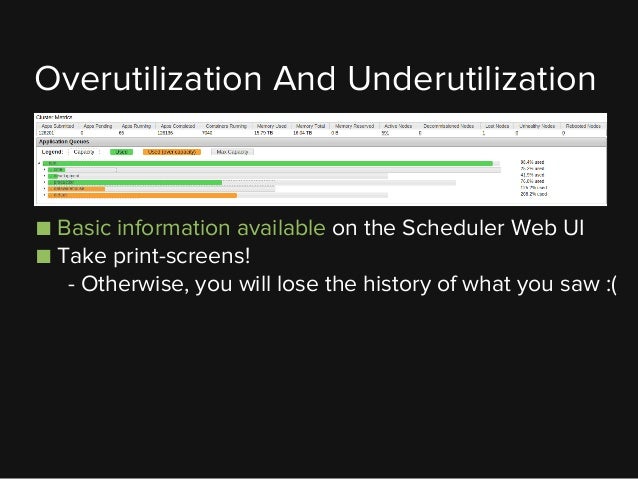

■ Basic information available on the Scheduler Web UI
■ Take print-screens!
- Otherwise, you will lose the history of what...
■ Capacity Scheduler exposes these metrics via JMX
■ Ganglia does NOT display the metrics related to
utilization of queues...
■ It collects JMX metrics from Java processes
■ It can send metrics to multiple destinations
- Graphite, cacti/rrdtool, Ga...

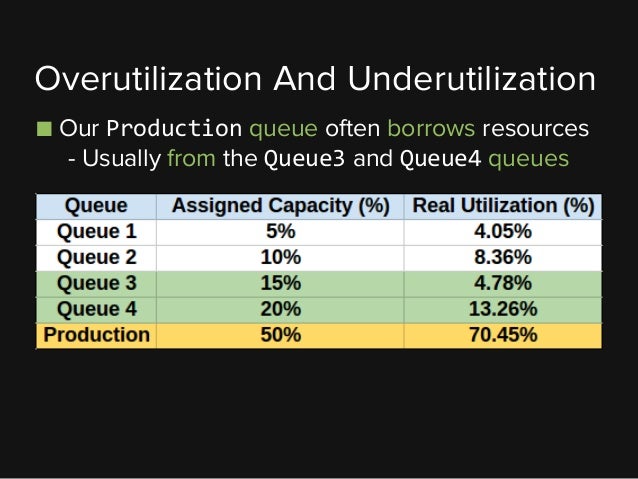

■ Our Production queue often borrows resources
- Usually from the Queue3 and Queue4 queues
Overutilization And Underutiliz...

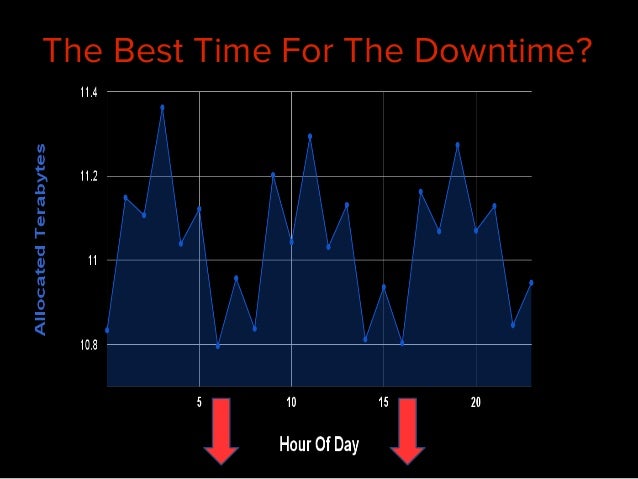

The Best Time For The Downtime?

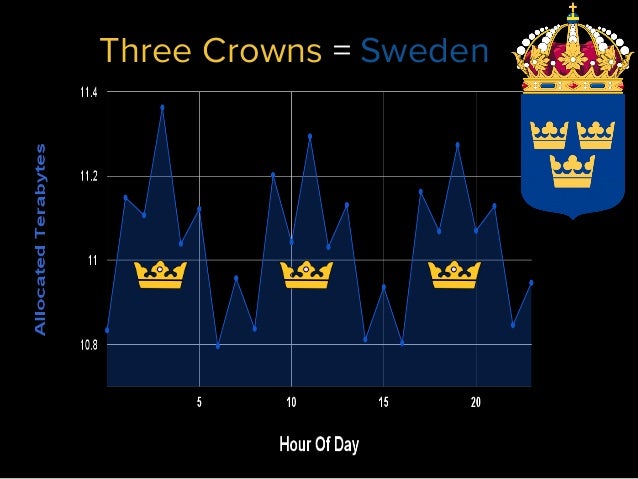

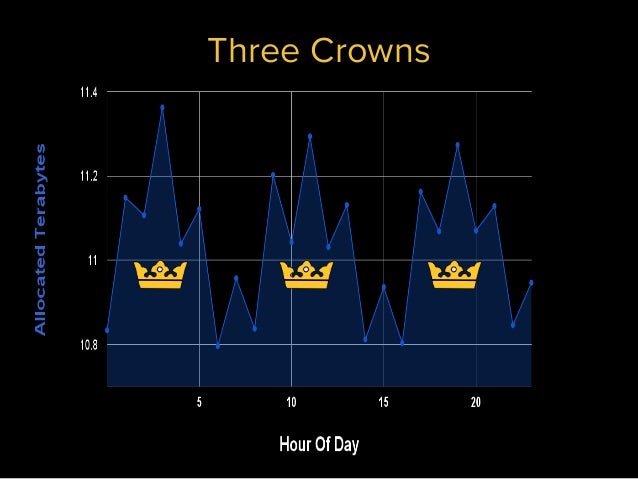

Three Crowns
Three Crowns = Sweden
BONUS
Some Cool Stuff
From The Community
■ Aggregates and visualizes Hadoop cluster
utilization across users
LinkedIn's White Elephant

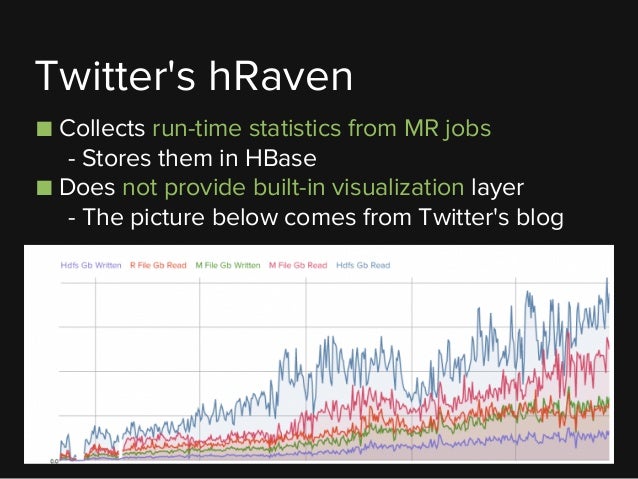

■ Collects run-time statistics from MR jobs
- Stores them in HBase
■ Does not provide built-in visualization layer
- The p...
That’s all!
■ Analyzing Hadoop is also a “business” problem
- Save money
- Iterate faster
- Avoid downtimes
Summary
Thank you!
■ To my awesome colleagues for great technical
review:
Piotr Krewski, Josh Baer, Rafal Wojdyla,
Anna Dackiewicz, Magnus Ru...
Section name
Questions?
Check out spotify.com/jobs or
@Spotifyjobs for more information
kawaa@spotify.com
Check out my blog: HakunaMapData.com
Wan...
Backup
■ Tricky question!
■ Use production jobs that represent your workload
■ Use a metric that is independent from size of data...
Benchmarking
Benchmarking
